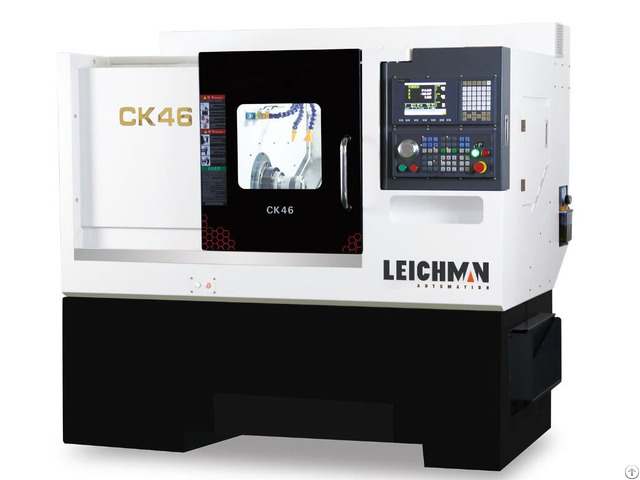

Gang Type CNC Lathe CK46

Product Description

The Leichman CNC machine tool control system adopts Taiwan SYNTEC system, and other CNC systems are optional.

The bed is inclined at 30°(CK46) / 45°(CK36), and the large carriage and the tool rest are placed obliquely, which makes the operation and chip removal of the machine tool very convenient.

Item Unit CK36 CK46

Capacity Max swing over bed mm 400 450 Max cutting diameter mm 350 360 Max machining dia.

(disk) mm 135 135 Max machining dia.

(shaft) mm 220 220

Travel X axis travel mm 750 950 Z axis travel mm 270 290

Precision Spindle runout mm 0.004 0.004 X/Z axis reposition precision mm 0.002 0.002

Body structure Slant bed degree 45 45 Slant Bed Gang-Type CNC Lathe｜CNC Revolver Lathe

1 - The base and the bed are integrally cast iron, which has strong shock resistance and is not easy to deform.

2 - The appearance design of the CNC Revolver Lathe machine tool is beautiful, and it takes up less space.

3 - The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.

4 - Work piece clamping method: hydraulic.

5 - The hydraulic supply unit of the machine tool has an enlarged fuel tank, better heat dissipation, and more stable work.
