Custom Sand Making Machine For Concrete - China

VSI Sand Making Machine custom Sand Making Machine for concrete Industrial Sand Making Equipment China

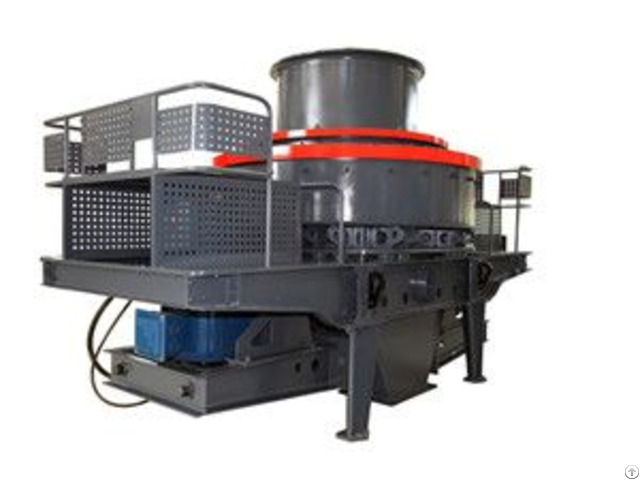

VSI Series vertical shaft impact crusher is designed by reputed German expert of SBM and every index is in world’s leading standard.

It incorporates three crushing types and it can be operated 720 hours continuously.

Nowadays, VSI crusher has replaced hammer crusher, roller crusher, roller ball mill, becoming the mainstream equipments in sand making business.

Reliable dual pump oil supply lubrication system—stable performance, long life

Hydraulic pressure jack device—convenient, timesaving and laborsaving for maintenance

Installation mode selection—handy installation, diversified modes, easy to operate

Crushing principle selection—impact grinding with superior particle shape

Chamber type optimization design——lessening consumption of wearing parts.

Stone is crushed by hitting other stones.

Material falls down to impeller cavity.

Under great centrifugal force, it hits material that coming downwards.

After hitting each other, they force a vortex between impeller and shell, and hit each other several times, finally smaller stone comes out, and goes to vibrating screen.

Satisfactory material is transported to sand washing machine, however overlarge material will go back to sand maker to be re-crushed.

Output sizes can be made according to customer requirement.

If input size is larger than the designed size, other crushing equipment will be necessary.

Applications：

VSI series crushers are widely used in crushing nonmetal mine, concrete, fireproof material, abrasive filler, frit, construction aggregate, sand, metallurgy and so on.

It is the indispensable machine in sand making industry and it is also the most ideal truing machine for mining and construction industries.

Sand Making Equipment Features： 1 - Large quantity and high yield

50-500 t/h, and compared under the same power of traditional equipment, production increased by 30% and stability .

2 - Low parts consumption

The best material impact Angle of crushing cavity.

problems in the design, less friction and wear parts, 30% lower than conventional equipment operation cost, reduce the use of the equipment cost directly

3 - Grain shape products

Products are cube, grain shape good, reasonable gradation, adjustable fineness modulus; Especially suitable for artificial sand and stone plastic, practice has proved more than any other traditional equipment sand, cosmetic effect increased by 30%

4 - The hydraulic device, easy to maintain

Hydraulic open device, crushing cavity internal maintenance convenient conversion, shorten the down time, save time and effort

5 - Automatic detection, safe and reliable

Set vibration display and alarm device, if adverse operation can be warned, the device stop working, and achieve the purpose of protect the machine

6 - Thin oil lubrication, automatic maintenance

German original thin oil lubrication station, the double pump complementary to ensure oil supply, automatic stop when no oil, no oil pressure; Oil cooling and heating device to ensure the bearing lubrication is always in the best state.

To completely solve the problem such as bearing heating, keep the spindle bearing temperature, prolong maintenance cycle and service life

7 - Installation is simple, easy to operate

Equipment light weight, installation, portable installation; Install, repair and maintenance is simple, convenient operation and use; Once a specific purpose, VSI crusher only minor adjustments, you can maximize its excellent performance Industrial Sand Making Equipment technical parameter Model Feed at center&sides Feed at

center Soft

Material Hard

Material REV

(r/min) Power

(kw) Machine

Size(mm) Capacity(t/h) Max.

Feeding(mm) VSI7611 120-180 60-90 <35 <30 1700-1890 110-150 3700x2150x2100

VSI8518 200-260 100-130 <40 <35 1520-1690 180-220 4140x2280x2425

VSI9516 300-380 150-190 <45 <40 1360-1510 264-320 4560x2447x2778

VSI1140 450-520 225-260 <50 <45 1180-1130 400-440 5000x2700x3300

VSI1145 500-640 250-360 <50 <45 1100-1310 400-440 5100x2790x3320 [production time]: November 2015

[Location]: South Africa

[Materials]: Pebbles

[Yield]: 350t / h

[Equipment configuration]: VSI sand making machine, vibrating feeder, impeller sand washing machine
