What Is a Common Rail Nozzle?

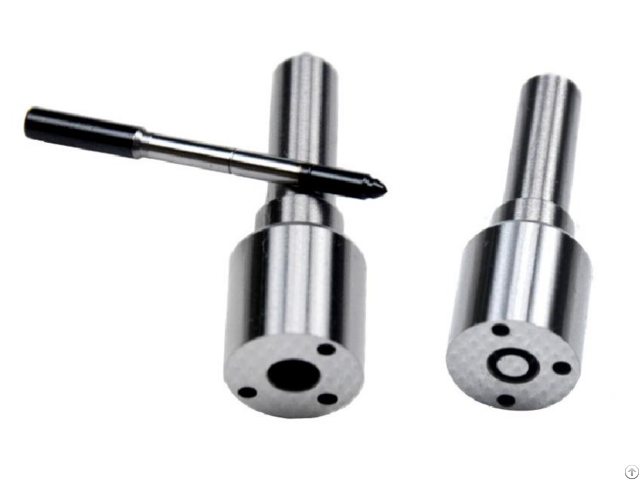

A Common Rail Nozzle is a precision-engineered component used in diesel common rail injection systems.

It is installed at the end of the fuel injector and is responsible for atomizing high-pressure diesel fuel into a fine mist inside the combustion chamber.

This fine atomization ensures complete combustion, improved fuel efficiency, reduced emissions, and stable engine performance.

Common rail nozzles are widely used in passenger vehicles, heavy-duty trucks, construction machinery, agricultural equipment, and industrial diesel engines.

How a Common Rail Nozzle Works

The common rail nozzle operates under extremely high fuel pressure and electronic control:

High-pressure fuel is delivered from the common rail

The injector needle controls fuel flow into the nozzle

Fuel passes through micro-sized orifices in the nozzle tip

Fuel is atomized into fine spray patterns inside the combustion chamber

ECU controls injection timing and multiple injection events per cycle

This precise control enables efficient combustion and optimized engine performance.

Types of Common Rail Nozzles

1 - Multi-Hole Nozzle

Most widely used type

Contains 5–9 micro holes

Produces fine and evenly distributed spray pattern

Ideal for modern passenger and commercial diesel engines

2 - Sac-Type Nozzle

Contains a small internal cavity (sac)

Suitable for older diesel injection systems

Simple structure and stable performance

3 - VCO (Valve Covered Orifice) Nozzle

No sac volume design

Reduces fuel dribble after injection

Improves emissions control and combustion efficiency

4 - Mini-Sac Nozzle

Reduced sac volume design

Balances durability and emission performance

Common in Euro IV / V / VI systems

Key Components of a Common Rail Nozzle

A high-precision nozzle assembly includes:

Nozzle body

Needle valve

Nozzle seat

Spray holes (micro-orifices)

Control chamber

High-pressure sealing surface

Heat-treated nozzle tip

Each component must meet strict micron-level precision requirements.

Materials Used in Common Rail Nozzles

To withstand extreme pressure and heat, nozzles are made from:

High-strength alloy steel

Hardened stainless steel

Tungsten carbide-coated materials

Anti-wear surface coatings

Heat-treated precision metal alloys

These materials ensure resistance to erosion, cavitation, and high-temperature fatigue.

Applications of Common Rail Nozzles

Common rail nozzles are used in a wide range of diesel engines:

Passenger diesel cars

Heavy-duty trucks and buses

Construction machinery (excavators, loaders)

Agricultural tractors and harvesters

Marine diesel engines

Industrial generator sets

Mining and off-highway equipment
