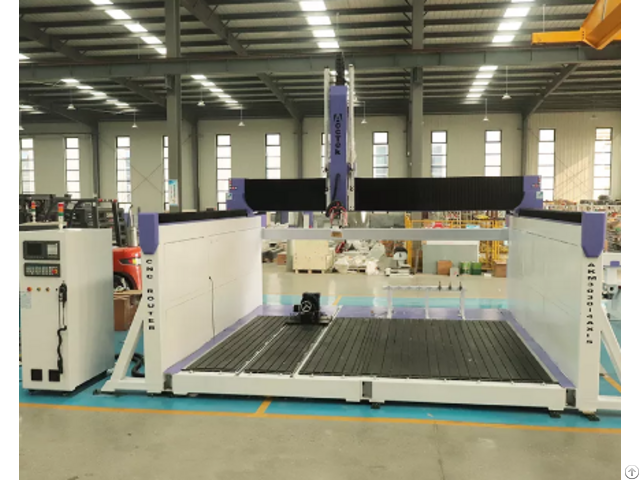

Automatic Tool Changer 4 Axis Cnc Router - China

This machine is a customized machine.

The working area is 2000x3000x1000mm.

It is 4 axis atc cnc router.

If you also need a similar machine, you can contact me, we can customize the machine according to your requirements.

Of course, we also have other size machine.

like 1300x2500mm, 1500x3000mm, 2000x3000mm and 2000x4000mm.

etc 4 axis woodworking machine detail psrts 1)9.0kw HQD air cooling atc spindle Smooth body, not easy to rustpowerful and longer life timeIndependent research and development, rational design.

2)Syntec controller The system stability is very good, the man-machine operation is friendly, easy to learn and operation, powerful function.

3)Japanese Yaskawa driver and motor This machine use Japanese Yaskawa servo motor 850w and driver.

Faster speed with signal feedback .

Low heat radiation .

Run smoothly at ultra-low speed.

Reduce the vibration, avoid oscillation.

Efficient torque enhancement.

Wood milling cutter parameter data Lathe Structure Seamless welded steel structure, better than cast iron one X, Y Structure Rack and pinion, gear drive, Taiwan 25mm square guide rails Z Structure Taiwan TBI ball screw, Taiwan 25mm square guide rails Spindle 9.0kw HQD air cooling atc spindle Working Mode Servo Motor and driver Japanese Yaskawa servo motor and drivers Operating System Syntec 60we Max.

Traveling Speed 55m/min Max Working speed 20m/min Compatible Software Ucancam/Type3/Artcam/A rtcut etc Resolution 0.01mm Command G code (HPGL, U00, mmg, plt) Working Voltage AC220V, 1PH or 380V, 3PH, 50/60Hz
