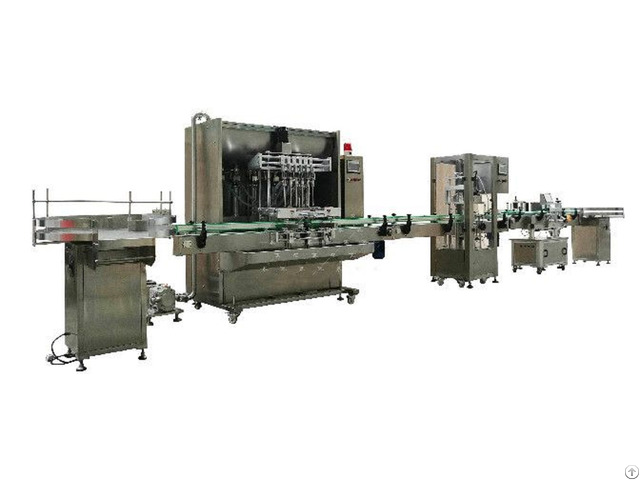

Automatic Filling Shampoo Machine For Liquid - China

Automatic Filling Shampoo Machine For Liquid, Automatic Lotion Hair Conditioner Filling Machine, Shampoo Filling Machine

It is suitable filling cream, paste and viscosity liquid in cosmetic, food, beverages, medicine.

Depends on the different products and various filling requests of the customers, for example, high viscosity or sticky cream, paste, such as, tomato paste, ketchup, jam, sauce, butter, chocolate paste, cosmetics cream, etc., low viscosity liquid products, such as, juice, beverage, shampoo, lotion, laundry detergent, dish detergent, wine, soybean sauce, vinegar, edible oil, cooking oil, drinking water, etc., and liquid chemical products, liquid pesticide, liquid fertilizer, liquid medicine, etc., Our company can design and produce suitable filling machines with matched filling system, such as, underflow pump, free-flow pump, flow-meter pump, piston pump, gear pump, screw pump, peristaltic pump, ceramic pump, electric weighs, etc., and depends on the filling volumes and production amount, the filling machines can be equipped with 1, 2, 4, 6, 8, 10, 12, 16 filling nozzles.

The operation system with advanced PLC+ touch screen, electrical and pneumatic components can be with good quality domestic brands, joint-venture brands and imported brands, such as, WEINVIEW, SIEMENS, SCHNEIDER, MITSUBISHI, PANASONIC, AIRTAC, etc., The parts contact with products are made of high class SUS 304, SUS 316 and SUS 316L.

Sanitary comply with GMP standard.

The machines with reasonable structure, advanced technology, high precision filling, stable performances, simple and easy operation, can be used independently, and can alsoequipped with automatic bottles unscrumbler, automatic stopper pressing machine, automatic caps screwing machine, automatic caps crimping machine, automatic bottles sealing machine, automatic date/batch codes printer, automatic carton/box loading machine, to be automatic filling production line.

With high automation degree, finished products with high qualified ratio, significantly saving manpower cost.

Model No TPAF Series

Name Automatic Multi Heads Liquid Filling Machine

Automatic Shampoo Filling Machine

Automatic Lotion Filling Machine

Automatic Liquid Detergent Filling Machine

Automatic Laundry Detergent Filling Machine

Automatic Liquid Soap Filling Machine

Automatic Liquid Products Filler

Filling Heads / nozzles Amount 2 4 6 8 10 12 16

Filling dosage 5-50ml, 50-500ml, 100-1000ml, 500-5000ml

Hopper Capacity 50L--150L

Filling Speed 1000-5000B/H (Depends on the filling heads amount of the filling machine, and the filling volume )

Accuracy ± 1.0%(on the base of 1000ml)

Control system PLC & Touch screen

Power supply AC220V 50Hz 1phase/AC380V 50HZ 3phase

Air consumption 0.3-0 .

7 Mpa

G.W. 450KG--1200KG

Power 0.5KW--2.0KW

Dimension customized
