Airbag 3d Vibration Table Molding - China

price: contact company for price

Airbag 3d Vibration Table Molding

Products Photos Catalog Airbag Vibration Table Photos Catalog

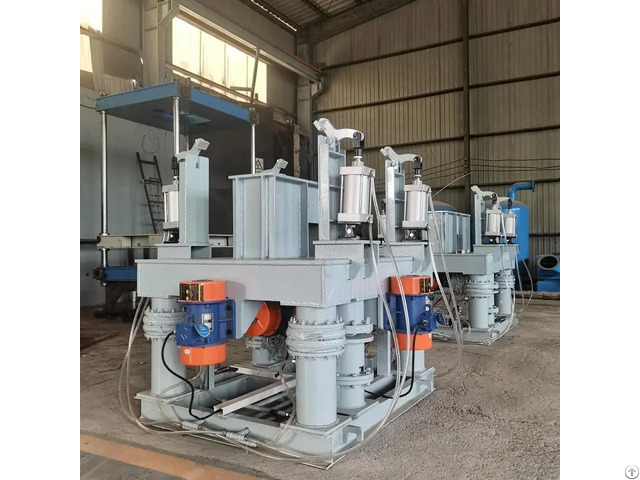

Airbag 3D vibration table (molding)

The 3D Vibration Table for Lost Foam Casting is designed for sand compaction and mold stabilization during the molding process of the lost foam casting equipment ​.

By generating multi-directional vibration, the equipment ensures uniform sand filling, improved mold strength, and stable casting quality.

Guoning provides heavy-duty vibration tables suitable for automated and semi-automated casting production lines.

Plate thickness: 16mm, 20mm steel plate welding production;

Vibration motor: 3 sets for vibration motors：

Bottom vibration motor unit: 2 MV30-2 motors, maximum excitation force: 20KN, power: 2KW;

Side vibration motor group 1: 2 MV15-2 motors, maximum excitation force: 10KN, power: 1.3KW;

Side vibration motor group 2: 2 MV15-2 motors, maximum excitation force: 10KN, power: 1.3KW;

Cylinder specifications: cylinder diameter 100mm, stroke 125mm;

Power requirements: AC power with rated power of 50Hz and rated voltage of 380V (deviation ± 5%);

Load: 6 tons;

Amplitude: 0.5mm Vibration acceleration: ≥ 1.0g;

Excitation force: can be adjusted by adjusting the eccentric block

Base (including air bag × 3);

Pillar × 4 sets (including jacking airbags × 4);

Upper seat (including upper platform and lifting bracket);

Cylinder combination × 4 sets;

Vibration motor × 6 units.


Company Contact:


  • Phone: 18631132318

  • Address: 1101, Block C, Tianshan Galaxy Plaza, No. 358 Yuhu, shijiazhuang , hebei , China

  • Email: Email


Published date: June 17, 2026

  • Business Description: Explore our Turnkey Lost Foam Casting Production Line, designed for seamless, cost-effective casting solutions with high precision and reliability.
