X Ray Inspection System - China

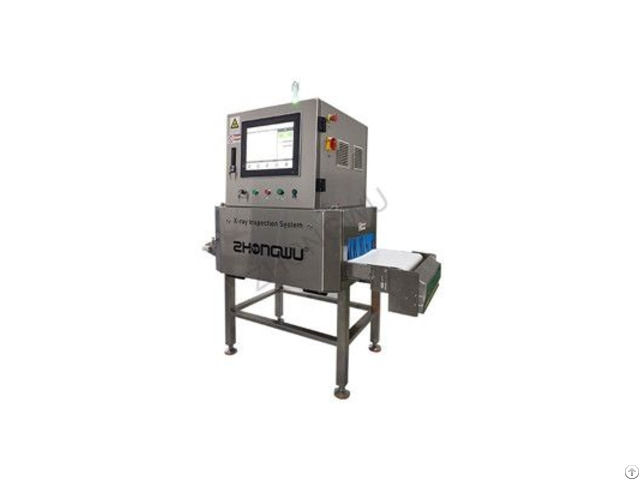

X-ray Inspection System

JNX series foreign object detection equipment is a single lane X-ray solution designed for the inspection of a wide range of contaminants (such as metal, plastic, glass, ceramics) in packaged or non-packaged products.

TECHNICAL DATA

Providing Customized Services

Equipment size (W×H×D, mm) 1504×1462×545 Excluding tower lights

Equipment weight (KG) ≈260

Power supply 220VAC, 50HZ Standby 0.3KW Normal 2KW

Conventional bare machine metal detection sensitivity (mm) SUS440C ball≥0.5mm;

SUS304 line (length 2mm)≥0.3mm;

Aluminum ball ≥ 1.5mm;

Ceramic ball≥1.5mm

Monitor 15-inch color TFT LCD display, resistive touch screen

Belt speed (m / min) 10-30

Conveyor line height (mm) 750±50 Other heights can be customized

Level of Protection IP30/IP54/IP65

X-ray leakage ＜1μSv/h

Relative humidity ≤85%

Environment temperature (℃) 0-45

The whole series product is customizable to meet customer requirements.

x ray food inspection systems Working principle

The higher the relative density of the detected object and foreign matter, the easier it is to detect.

We are x ray food inspection systems manufacturer.
