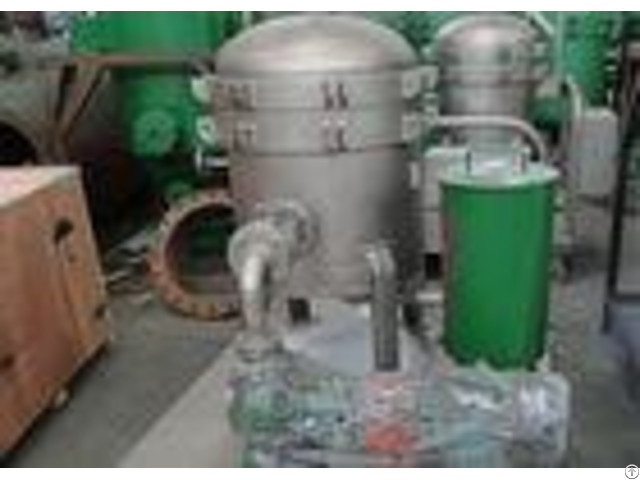

Szl Series Vertical Pressure Leaf Filter Carbon Steel Material Color Customized - China

SZL Series Horizontal Plate Filter Carbon Steel Material Vertical Pressure Leaf Filter Product Description: SZL series horizontal paper plate filter is a solid-liquid separating equipment with characteristics as high-efficiency, energy-saving, hermetic operating.

It is mainly used in refine filtration of the liquid.

We can get filtrate with different precision through choosing filtering paper.

The filter is composed of tank, layers of horizontal filter plates and filter paper which is installed between filter discs.

Filter paper is used as filter medium to pressed filter in hermetic tank.

During filtering, filtrate is conveyed to filter tank by pump and gets into middle of two filter plates from hole which are around the filter plates.

Filtrate comes into hole of filter plate through filter paper and support plates, and comes out from the bottom.

After filter finished using compressed air to press the residual liquid out.

Product Applications: SZL series horizontal paper plate filter is a solid-liquid separating equipment with characteristics as high-efficiency, energy-saving, hermetic operating.

It is widely used in chemical, petroleum, foodstuff, oils and fats, pharmacy, etc.

Product competitive advantage: 1, Completely enclosed filtration, no leakage, no pollution.

2, Once filtering complete clarifed, it filtering precision up to PPM.

3, Less cost of production, and easy to repair and maintain.

Product Specifications: - - - -

Model | Filtration

area () | Treatment

capacity (T/H) | Working

pressure (Mpa) | Working

temperature() | Inlet/outlet

nozzle (mm) | Shell

diameter (mm) | SZL-1.5 | 1.5 | 2 | 0.3 | 150 | DN50 | 400 | SZL-3 | 3 | 4 | DN50 | 600 | SZL-5 | 5 | 7 | DN50 | 800 | SZL-7 | 7 | 10 | DN50 | 800 | SZL-10 | 10 | 13 | DN50 | 900 | SZL-12 | 12 | 15 | DN50 | 900 | SZL-15 | 15 | 18 | DN50 | 900 | - - - -
