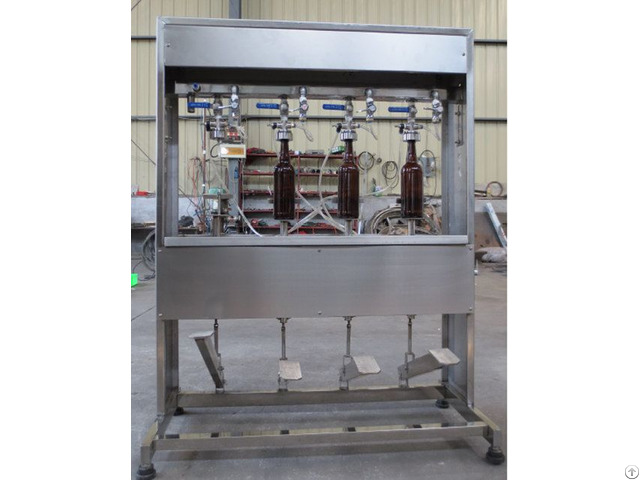

Four Heads Beer Bottle Filling Machine - China

Item Parameter

Model HG-GZB-4

Capacity 400BPH

Container Glass bottle

Work principle Counter pressure

Filling liquid Beer

Suitable industry Food industry

Filling head 4

Bottle height 90-320mm

Bottle neck diameter 10-30mm

Dimension(L*W) 1000*450*1320mm

Weight 160kg

1 - Firstly install the beer filler on the filling site.

It is better to be closer to the draft beer buffer tank.

2 - Adjust the four footing screws of the filler until it does not shake and be steady.



3 - Connect beer inlet pipe.

The filler beer inlet pipe mouth is DN20 flexible pipe connector, the same as buffer tank beer outlet pipe mouth.

This two pipe mouth can be connected by pressure hose (the internal diameter of the flexible pipe is 2.5cm).

After insert the flexible pipe, tighten it by steel wire clamp.

4 - Connect CO2 inlet pipe, that is: connect the filler air inlet and beer buffer tank CO2 flushing pipe mouth(beer buffer tank CO2 flushing pipe can connect three links ) by∮8PU pipe.

Inset the pipe directly, which can make sure the beer pressure is the same as CO2 pressure.
