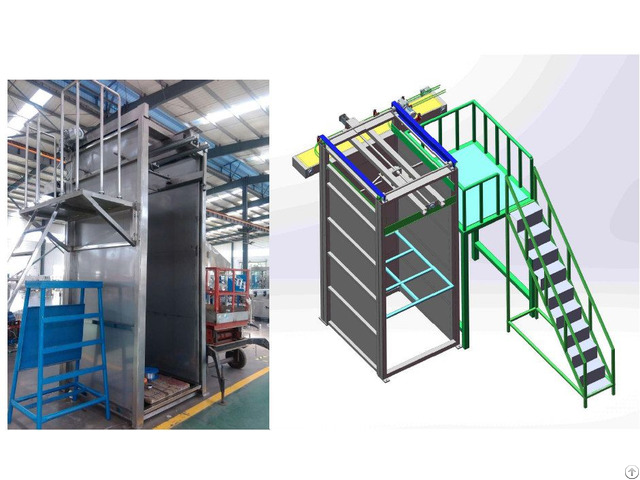

Depalletizer - China
price: 23000.00 Dollar US$
Model HG-XD-170
Productivity 4000-9000CPH
Suitable bottle diameter Φ52-Φ150mm
Suitable bottle height 68～270mm
Inlet pallet platform 1
Lift platform 1
Total power 2.22KW
Weight 2000Kg
Outsize 6500×2500×3100mm(L*W*H)
Empty bottle depalletizing：
1 - Forklift transports and puts the pallet which is stacked fully of the empty bottles on the conveyor.
Then the conveyor transports it on the lift platform; the motor of the conveyor is controlled by the transducer.
The conveying is activated slowly from halt state to avoid the danger of empty bottles dumping because of sudden activating.
2 - Pallet positioning device senses the correct position when the empty bottles come into main lift platform and come down when finish depalletizing by a positioning device making use of level principle and microswitch.
Company Contact:
- Posted By: Shandong HG Machinery co.,Ltd
- Phone: 86-531-86418866
- Address: No.55 Gongyenan Road, Hi-tech District, Jinan , shandong , China
- Email:
- Website: http://www.shandonghg.com
Published date: September 28, 2016
- Business Description: Shandong HG Machinery Co., Ltd. specializes in designing, researching and manufacturing fully automatic and semi automatic juice, water, beer, beverage and the other liquid production and filling line.
Introducing European advanced technology and innovate on the technology, HG company becomes leader in domestic liquid package machinery industry and the most professional supplier for liquid production and package turnkey project.
By 17 years effort and persistence on professionalism, she becomes the most professional liquid package machinery research and manufacturing base, National key hi-tech enterprise and National Torch Program projects enterprise.
