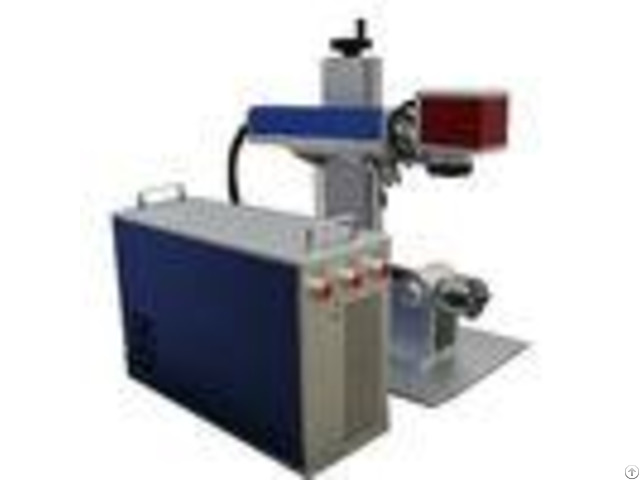

175x175mm Blue Mini Laser Marking Machine For Gear 7000mm S Speed - China

Marking Area 175X175Mm Mini Metal Engraving Machine For Gear Principle Laser marking machine has a high energy density of the laser beam, the surface of the material being irradiated irradiation, laser energy absorption in the irradiated area to produce thermal excitation process, so that the material surface temperature rise, produce metamorphosis, melting, ablation, Evaporation and so on.

Application: Widely used in IC chips, computer accessories, industrial bearings, watches and clocks, electronic and communications products, aerospace components, all kinds of auto parts, household appliances, hardware tools, molds, wire and cable, food packaging, jewelry, tobacco and military affairs and many other Field graphics and text markup, as well as high volume production line assignments.

Parameter - - - - type | Fiber laser marking machine | Size | 75*55*83cm | Gross Weight | 75kg | Laser power | 10/20/30/50 w | Laser wavelength | 1064nm | Power supply | 220V10%/50Hz/4A | Repeating precision | 0.002 | Repeating frequency | 0.002 | Marking range | 110x110mm(customize) | Marking depth | 0.01~1mm | Marking speed | 7000mm/s | Minimum character | 0.15mm | Minimum line width | 0.01mm | Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number | - - - - Usage method 1, check the marking machine's power cord, so that it is connected correctly and reliably; 2, connected to the total power supply.

Power indicator light 3, confirm the laser head mushroom button (red emergency stop switch) is in the pressed state; 4, open the computer monitor, the host computer power switch; 5, Rotate the red mushroom button in the direction of arrow to make it bounce, then turn on the power of the laser head.

After about 1 minute, the laser head starts to finish; 6, At this point, the laser marking machine is turned on, you can accept the operator's command to mark the operation Product features The machine has a high degree of automation, pollution-free, high performance, high precision, high efficiency, fast speed, stable performance, good beam quality, long service life and low maintenance cost.

FAQ 1 - Scope of application? Suitable for metal, nonmetallic and other materials.

2 - What is the way of focusing? Red light location is supported.

Focus 3 - Lens range.

100 x 100 mm / 150 x 150 mm / 300 x 300 mm optional Design feature The combination of laser processing system and computer numerical control technology can form a highly efficient and automated processing equipment, which can display various characters, symbols and patterns.

It is easy to design the marking pattern by software, change the mark content and adapt to the requirements of high efficiency and fast pace of modern production Function Powerful software, with graphic alignment, red preview, external transmission read data function, can mark a variety of bar codes, graphics and anti-fight as well as light-edge function to fully meet customer needs, support for PLP, PCX, BMP format files, Any computer graphics, characters, numbers, letters and so on.

After service 1.3 year guarantee, providing free technical support.

2 - During the warranty period, Warranty period, the required parts after the non-human damage free replacement, the freight is borne by us.

3 - Machine has been adjusted before delivery, operation instructions is included in the delivery.

If there is any other questions, pls kindly tell us.

Packing and shipping Packing in wooden case, 75*55*83cm The machine gross is 1-188KG, you can use express delivery.

If more than 75KG, you can choose sea transportation.

- - - - Delviery time | 7-15 working days | Type of shipping | Express, air or sea | Terms of payment | T/T, credit card, western union, paypal | package size | 75x55x83cm | Gross weight | 75KG | - - - - Chuke Factory Chongqing Chuke Intelligent Machinery &Equipment Co., Ltd .

is located in Beibei District, the back garden city of Chongqing Municipality.

Chongqing is an economic center city, an important transport hub and an inland river port in the southwestern China and the upper reaches of the Yangtze River.

It owns automobiles, machinery, electricity, chemicals, And other comprehensive industrial base.

CHUKE is relying on Chongqing Jialing Huaguang Weaponry Industry Technology background, working in the military industry 10 years of experience, but also to take advantage of the wave of reform and development of independent entrepreneurship, it is a technologically advanced, Skilled young entrepreneurs.

For the product quality has strict requirements, the former CHUKE production marking needle is a very small single, very many specifications, each product is the owner of the seal-like test, for all scrapped all scrapped Processing, before the success of today's Asahi marking needle boutique.
