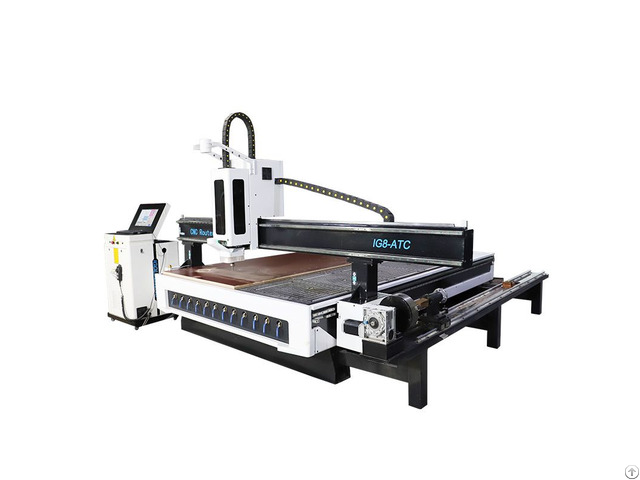

What Are The Advantages Of This High Selling 4 Axis Cnc Router - China

price: 50000.00 Dollar US$

What Are The Advantages Of This High-Selling 4 Axis CNC Router

igoldencnc.

com/product s.

html What is a 4 axis CNC router? A 4 axis CNC router operates on the X, Y, and Z axes like a 3-axis machine, but it also includes rotation around the X-axis, which is called the A-axis.

This is the 4th axis that’s added to our machining process.

In most cases, the workpiece will be rotated to allow for cutting to occur around the B-axis.

Because the spindle of this type of CNC can swing left and right, the spindle can approach the work piece from multiple different angles and efficiently process three effective processing surfaces, the three-dimensional machining of cylindrical, curved and circular surfaces is realized.

These four Axis CNC machines can realize not only the plane engraving but also the 3d carving of irregular workpieces.

And this type of wood CNC machine is suitable for the common workpiece, three-dimensional work piece, complex work piece, and irregular graphics processing.

The 4-axis cnc router has all the same axes of a 3-axis router plus the additional A-axis that rotates the spindle around the X-axis up to 180 degrees during the cutting process.

This rotational axis allows cuts to be executed on multiple sides of the workpiece without resetting, while a 3-axis router can only perform cuts to one side of the same piece at a time.

4-axis CNC routers are the preferred method for advanced, intricate cuts and carvings like those often seen in furniture, musical instruments, cabinetry, and more.

Features of 4 Axis CNC Router:

Two independent working spindles can finish two work-piece at the same time, also cna use two different tools to finish two different designs one by one automatically.

Specia Vacuum system with vacuum table with movable suction block, vacuum pump and tubes.

Heavy bistratal side plates, which can keep large supporting power for the gantry's moving perfectly.

Independently Electric control Box, with perfect wiring nad free moving pulleys.

All axes use original Taiwan Hiwin big size guide rail.

X and Y adopts big size rack with helical gear transmission mode, the moment of force will be transferred more powerful and equably.

Adopts gantry movement, that can process any kind of materials freely.

Heavy model with thick seamless steel lath body structure.

By strict vibration aging technology to remove the internal stress, dust-free sandblassting paint process, long-term use without deformation.

Every spindle working size cab be up to 1300mm*2500mm.

Excellent compatibility for all G ode design software .

Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software

ApplicableIndustries

Wood processing cutting and carving on any kind of wood for making furniture, such as door, window, cabinet, craft wooden door, chairs and so on.

Also suitable for the guitar, violin and other musical instrument engraving, cutting and milling.

The system stability is very good, powerful functions, the operating software is simple and easy to learn, the man-machine operation is friendly.

Professionally applied to high-end cnc router machines, the anti-interference ability and control accuracy of the control system are superior to other types.

The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of fixing on the worktable.

Double stage air pump with filter and pressure relief valve.

It has less noise when working.

The vacuum adsorption technology is applied to the woodworking cnc router to greatly improve the work efficiency.

Application of 4 Axis CNC Router 4 Axis CNC Router is not only suitable for wood, mdf, acrylic processing, it is also very suitable for soft metal cutting, such as aluminum composite panel, aluminum sheet, copper, etc., this type play an important role in the advertising industry.


Company Contact:


  • Phone: 18660188728

  • Address: Yu Huang Miao, Shanghe , employment , China

  • Email: Email


Published date: November 24, 2021

  • Business Description: We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc.

    The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.

    We adopt international advanced producing technologies to improve our products.

    Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.

    Our company adheres to the Market-Oriented business principles, and implements the business philosophy of "Quality First and Customer First".

    We have set up more than 20 sale and service departments around China which can offer our customers the services of design, fixing, training, maintenance and so on.

    Besides sale in China, our products exports around the world including the Middle East, Africa, Europe and the USA.
