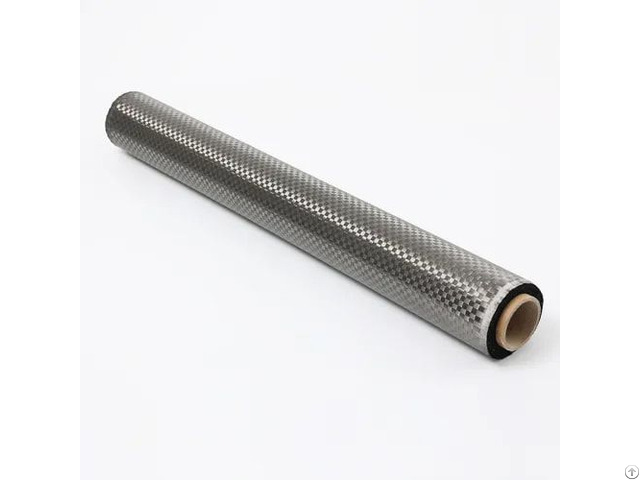

Spread Tow Carbon Fiber Fabric - China

Spread Tow Carbon Fiber Fabric represents a breakthrough in lightweight composite reinforcement technology.

Developed through an advanced tow-spreading process, it delivers ultra-thin layers with aerospace-grade precision, exceptional fiber alignment, and surface quality that surpass traditional woven fabrics.

What Is Spread Tow Carbon Fiber Fabric?

Spread tow technology flattens and widens carbon fiber tows by 3–5 times their original width, creating a single-layer fabric with a thickness below 0.05mm.

The result is a next-generation reinforcement material that dramatically improves surface finish, weight reduction, and mechanical performance.

Through a special widening process, carbon fiber filaments are calendered to 3 to 5 times their original width to form an extremely thin layer material with a single-layer thickness of less than 0.05mm, achieving:

● The surface density is reduced by 40% (up to a minimum of 30g/m²).

● Fiber straightness > 98% (eliminating the bending loss of traditional woven fabrics)

● Porosity < 0.3% (resin impregnation rate is increased by 2 times)

Core advantages:

● Lighter: 20%-30% less weight than conventional carbon cloth at the same strength.

● Higher fiber content: less resin used, improved mechanical properties of composites.

● Smoother surface: almost no braided texture, suitable for high-precision spraying or exposed finishing.

● Better impact resistance: more uniform fiber distribution, reduced stress concentration.

Technical Parameters

Parameters Standard Specification Military-grade options

Fiber Type T700S M55J/UM66K

Single-layer thickness 0.03-0.07mm 0.02mm(ultra-thin type)

Widening Ratio 4: 1 (equivalent width from 12K to 3K) 6: 1 (patented process)

Surface Density 50-150g/m² 30-80g/m²

Tensile Modulus 240GPa 540GPa(high modulus)

Fiber Volume Content ≥70% (vacuum infusion process) ≥75% (pre-impregnated material)

Width 1000mm/1500mm Customized to 2500mm

Cutting-edge applications

● Aerospace technology

● Aviation industry

● New energy

● Automobile manufacturing

● Consumer electronics

● Medical devices

Why Choose Us?

As a leading carbon fiber fabric supplier, Rongui New Material specializes in advanced fiber processing technologies.

We offer full customization on width, fiber type, surface weight, and resin compatibility.

Partner with us for professional consultation and reliable composite solutions.
