Eleven Section 60ft 55msi High Modulus Carbon Fiber Window Cleaning Pole - China

Quick Detail: High Strength to weight ratio

Good Rigidity

Corrosion resistant

Fatigue Resistant

Good tensile strength

Low coefficient of thermal expansion

Non poisonous

X-Ray Permeable Description: 60FT high modulus carbon fiber pole is a 11-section pole which compacted at 7.4FT.

All the sections could be pull out, that means one pole for all the job requirement.

These carbon fiber telescoping poles slide effortlessly and could be locked at any length, which are ideal for any application where compact storage and long extension length are necessary.

These poles are easy to operate and carry.

They can be extended to maximum length in few minutes by pulling out and locking each telescoping section.

The main benefits of carbon fiber over typically used metal tubing are its low weight and high stiffness.

Carbon fiber tubing has a very low CTE (coefficient of thermal expansion) which means when heated or cooled the material does not grow or shrink much at all.

The CTE of carbon fiber is very near zero.

Corrosion Resistant

* Warning: Carbon Fiber is an excellent electrical conductor.

Our poles could be made with fiberglass outer layer to add the insulation character.

Specifications: Extended length: 60FT

Collapsed length: 7.4FT

Weight: according to the base section diameters

Segments: 11

Base tube diameter: according to the customer’s request

Surface finish: 3K or Uni-direction, other options are available

Fiber Type: High Modulus Carbon Fiber

Fiber Orientation: uni-directional

Matrix Type: Epoxy

Inner Diameter (ID) Tolerance: +/- 0.05mm

Outer Diameter (OD) Tolerance: +/- 0.05mm

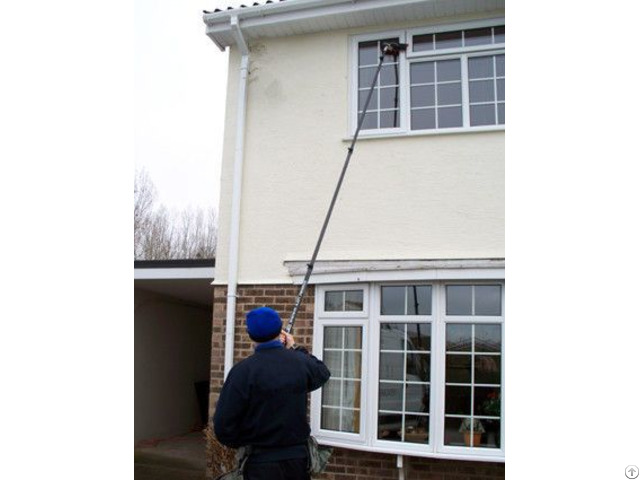

Length Tolerance: +/- 0.1mm Carbon fiber tube Applications: Water fed pole for window cleaning, gutter cleaning

broadcasting antenna masts

Flagpole

camera pole, Camera tripods, monopods, Telescoping Camera pole Jib Arm

Telescopic prism poles/GPS pole

Riggers includes center rigger poles and outrigger poles

Additional handle to reach high

Many others Competitive Advantage: Engineer team with 15 years carbon fiber industry experience

Factory with 12 years history

High quality carbon fiber fabric from Japan/US/Korea

Strict in-house quality checking, the third party quality checking also available if requested

All the processes are strictly going according ISO 9001

Fast delivery, short lead time

All carbon fiber tubes with 1 year warranty

Company Contact:

• Posted By: Lanbao Sci & Tech Development Limited

• Phone: 866315775891

• Address: 201-2 Shichang Avenue, Weihai , Shandong , China

• Email:

• Website: http://www.carbonfibertelescopicpole.com/

• Business Description: Here at Lanbao Sci & Tech Development Limited, it's all about carbon fiber technologies.

  We are specialized in carbon fiber tubes related products like telescopic carbon tubes from big size to small, the mature products are such as carbon fiber water fed pole for window cleaning and carbon fiber trekking poles with our own patented owned locking mechanism.

  And our carbon fiber tubes are also used in other products as flag pole, fishing pole, sport fishing outriggers, tripod etc.
