Handhold Air Leg Compressor Pneumatic Rock Drill With 0 360 Hole Angle Range Yt24 - China

price: check with company for price

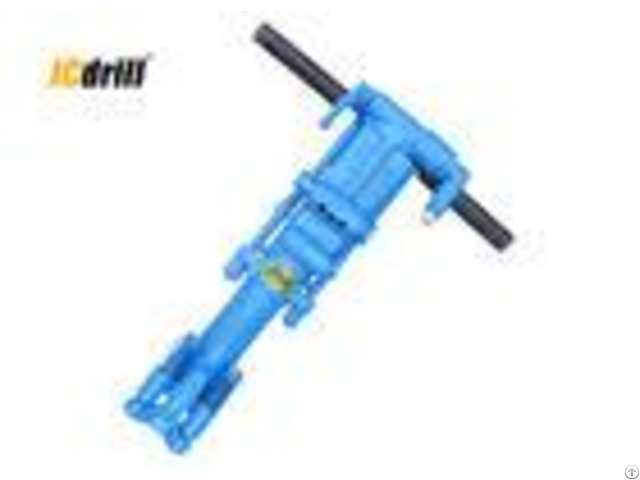

Handhold Air Leg Compressor Pneumatic Rock Drill With 0 360 Hole Angle Range Yt24

Products Photos Catalog Handhold Air Leg Photos Catalog

YT24 Handhold Air Leg Compressor Pneumatic Rock Drill with 0 - 360 Hole Angle Range Application YT24 jack hammer air leg rock drill is rock drilling equipment which have lower noise and more efficient.

It's widely used in coal mine, railway, traffic, water conservancy, etc.

it can be used with FT140BD short air leg and FT140B long air leg.

We have a wide range of pusher leg and stopper rock drills to cover all construction, tunneling and mining applications in different rock formations.

They are robust but simply designed, with high impact energy and low air consumption.

This air leg pneumatic Rock Drill is widely used in metallurgy, coal industry, road construction, mining and other drilling operations.

Characteristics 1 - Easily-accessible position throttle 2 - Integral muffler, lower noise 3 - It accepts heavy duty bits 4 - Reliable structure, easy and stable operation 5 - Drill diam.

can be from 32mm-60mm.

6 - Hand-held and air legs rock drill accessible.

7 - Provide the ultimate combination of performance and economy.

8 - Smart, and durable.

Specification - - - - 1 | Type | | YT24 | 2 | Weight | Kg | 24 | 3 | Length | (mm) | 678 | 4 | Cylinder diameter | mm | 70 | 5 | Piston stroke | mm | 70 | 6 | Working pressure | Mpa | 0.4~0.5 | 7 | Impact energy | J | 44.7 | 8 | Impact frequency | Hz | 31 | 9 | Air consumption | L/s | 66.7 | 10 | Working water pressure | Mpa | 0.2~0.3 | 11 | Air pipe inner dia | mm | 19 | 12 | Water pipe inner dia | mm | 13 | 13 | Rock drill hole dia | mm | 34~42 | 14 | Rock drill hole depth | m | 5 | 15 | Shank size | mm | 22108 | - - - - Packing& Delivery Service In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.


Company Contact:


  • Phone: 86-10-84673566

  • Address: Room 1005,Building4,Tianchangy uan,Beiyuan Road,Chaoyang District,Beijing,China, Beijing , Beijing , China

  • Email: Email


Published date: May 29, 2018

  • Business Description: Beijing Jincheng Mining Technology Co., Ltd(JCdrill) located in Beijing, China, for more than 20 years we have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, relative accessories & drilling services.
