Fit Up Roller Station - China

Fit fit up station Fit Up Roller Station - FIT Series Stable Speedy Pipes Joining Process

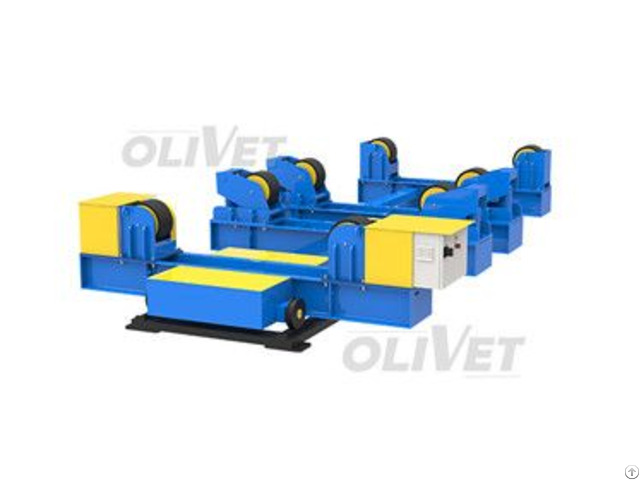

FIT series Fit UP Roller Bed Station is used for two or three pipes/ shells assembly and welding job.

FIT Fit Up Station is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

No extra rail tracks, the Fit up roller bed station allow easily to place various sites, inner of workshop or outdoor location.

welding fit fit up station Features A.

Designed and robustly built to withstand rugged work enviroments B.

Fastest system to assemble 1+1 or 1+1+1 sections C.

Four independent hydraulic adjusting roller to align the two sections with each other

D.

Large range center distance to match diffrent diameter of workpiecec

E.

European hydraulic station, Parker oil tube and Schneider elctrical control system

F.

Ideal for: - Wind tower fabrication - Pressure vessels - Pipe assembly

Scope of Delivery

A.

1 Power section, 1 Idler roller bed

B.

2 Fit up roller beds and hydrulic station

C.

1 Hydraulic

D.

1 Electric control system 1 Main control panel 1 Remote pendant

welding positioner Main Technical Parameters

Model FIT-30 FIT-40

Max loading capacity 30 tons 40 tons

Workpiece diameter ? 800- ? 3500 mm ? 800- ? 4500 mm

Rolling speed 100-1000 mm/min 100-1000 mm/min

Rolling motor power 2 X 1.5 kw 2 X 2.2 kw

Roller material Polyurethane (PU) Polyurethane (PU)

Hydraulic elevating adjusting stroke 150 mm 150 mm

Hydraulic horizontal adjusting 250mm 250mm

Power rotator moving speed 200-2000mm/min 200-2000mm/min

Wuxi OLIVTE Machinery Equipment Co., Ltd supply welding equipment, welding rotators, welding positioner& manipulator, milling equipment, etc.
