Binzel 501d Mig Welding Torch - China

1 - PRODUCT INFORMATION:

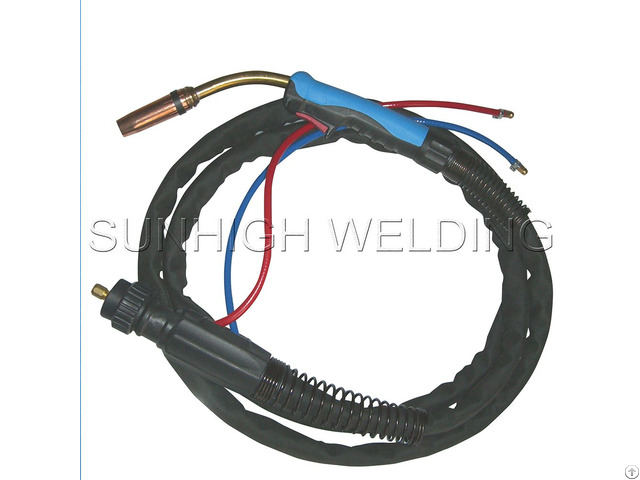

Water Cooled MIG/MAG Welding Torch MB 501D

Binzel 501D Welding Torch

Liquid-cooled

Technical data

EN60974-7

Rating

500ACO2

450A Mixed Gases

M21

Duty cycle

60%

Wire size

1.0-1.6

Rating Duty Cycle Wire size

500A CO2/ 450A Mixed Gas 100% 1.0-1.6MM

Certifitation: CE & SGS

Welding Gas Nozzle/ CO2 Torch Nozzle

Welding Nozzle:

Cylindrical Φ20 145.0051

Conical Φ16 145.0085

Tapered Φ14 145.0132

Welding Contact Tip / Torch Tip:

E-Cu Φ0.8

140.0114

Φ1.0 140.0313

Φ1.2

Φ1.6

140.0442

140.0587

E-Cu for Al

Φ0.8 141.0003

Φ1.0 140.0008

Φ1.2

Φ1.6

141.0015

141.0022

CuCrZr Φ0.8 140.0117

Φ1.0 140.0316

Φ1.2

Φ1.6

140.0445

140.0590

Welding Torch Liner:

Material of Liners Diameter 3m 4m 5m

Insulated liner Φ0.8 122.0005 122.0007 122.0009

Φ1.0 122.0031 122.0036 122.0039

Φ1.2

Φ1.6

122.0031

122.0056

122.0036

122.0060

122.0039

122.0063

PTFE liner Φ0.8 126.0005 126.0008 126.0011

Φ1.0 126.0021 126.0026 126.0028

Φ1.2

Φ1.6

126.0021

126.0039

126.0026

126.0042

126.0028

126.0045

Carbon PTFE liner Φ0.8 127.0002 127.0003 127.0004

Φ1.0 127.0005 127.0007 127.0008

Φ1.2

Φ1.6

127.0005

127.0010

127.0007

127.0012

127.0008

127.0013

Welding Torch Spare Parts:

Gas Diffuser Tip Holder

standard: 030.0145

long life: 030.0037

ceramic: 030.0190

M6 142.0008

M8 142.0022

Packaging & Shipping:

♦packing:

standard neutral export packing or as custom's request

♦shipping:

Shanghai port

delivery time: 10-25 days after confirmed the order

MAIN PRODUCTS:

MIG/CO2/TIG/Plasma/Arg on Welding Torches and Accessories:

1 - Binzel 15AK, 24KD, 25AK, 36KD, 40KD Air Cooling Torch , 501D Water Cooling Welding Torch

2 - Panasonic 180A, 200A, 350A, 500A Welding Torch

3 - OTC 180A, 200A, 350A, 500A Welding Torch

4 - PSF / ESAB 205A, 305A, 405A, 505A Welding Torch

5 - Trafimet 15AK, 24KD, 25AK, 36KD Welding Torch

6 - TBI 15AK, 24KD, 25AK, 36KD Welding Torch

7 - KR 180A, 200A, 350A, 500A Welding Torch

8 - P80, AG60, PT31, SG51, SG53, JG60, JG100, SG55, AG100, TZ100, A141, A101 Plasma Cutting Welding Torch

9 - TIG welding Torches: WP9/WP12/WP17/WP18/WP26/W P20/WP27 Air/Water Cooling Torch

10 - MIG/CO2 Welding Parts : contact tip , tip holder, swan neck, welding nozzle, gas diffuser, welding liner, Teflon liner, cable plug , euro connector, Panasonic connector, OTC connector, insulator, feed roller, protective paste, wire feeder, wire feeder motor,

11 - TIG /Argon Welding & Cutting Parts: electrode tip & nozzle, welding collect, collect body, gas lens, ceramic nozzle, long cap, short cap

12 - Electrode Holder, Earth Clamp, Welding Wires, Cable Connectors

Special Requests:

1 - We can print your LOGO on products or packages.

2 - High quality and competitive price and new fashioned design.

3 - We can manufacture the products according to your requirements.

4 - We can supply various of torches and we are professional.

5 - Above is only for reference, we can make customized products.
