60t Cylinder Welding Hydraulic Rotator Fit Up Tank Rotators - China

60T Cylinder Welding Hydraulic Rotator, Fit - up Tank Rotators 1 - Quick Detail # This roller bed is special designed for pipe fit-up by the means of hydraulic adjustments.

# Suitable for tank vessl fit-up or assembly in"1+1" or "1+n" growing line; # The four rollers on the turning roll are driven by four oil cylinders separately.

It can realize simple operation or simultaneous running at the same side of the two oil cylinders through control, convenient and quick.

2 - Introduction This series pipe welding rotators are used for assembly or fit-up of long pipe or tank as wind tower, tank vessel, etc.

Adjusting roller UP and DOWN through oil cylinder to gain an accurate alignment of two pipes, and then to weld.

It works with conventional type turning roll to realize the section to section assembly by means of 1+1 mode or 1+n mode (also called growing line).

We also provide tailor-made pipe welding rotator according to your special requirements.

3 - Main Parameters - - - - Model | GZD30 | GZD60 | Max loading T | 30 | 60 | Suit diameter mm | Min | 1000 | 2000 | Max | 4000 | 6500 | PU Roller mm | Dia | 400 | 450 | Width | 220 | 240 | Linear speed m/h | 6--60 | Speed Control | VFD | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

4 - Main features The standard models of our pipe welding rotator or roller beds have the following features: # This welding turning roll consists of unpowered fit-up roller bed, hydraulic unit and electric control system, etc.

# Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting; # Upper surface of base is treated with fine machining; # The turning rolls are PU rollers.

The core of the rollers are cast-iron clad with PU material; # The four rollers on the turning roll are driven by four oil cylinders separately.

It can realize simple operation or simultaneous running at the same side of the two oil cylinders through control, convenient and quick.

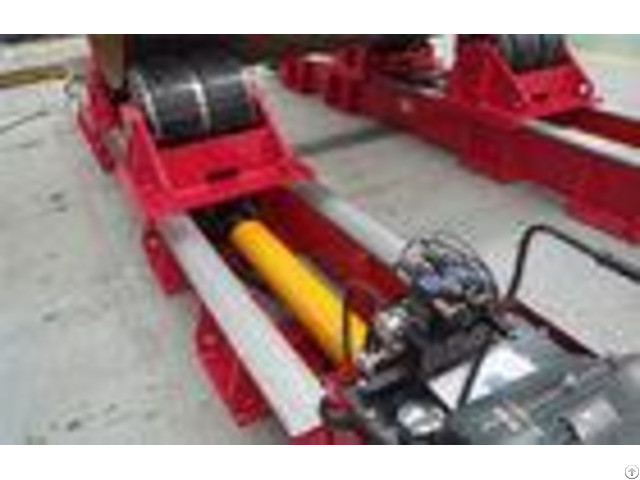

# Hand pendant; # Main electric elements are ABB/Siemens brands; # Lifting lug on the base of roller bed; # Standard color: Optional features: # Roller material options: Metallic or Rubber roller; # Interface for integral control with welding column&boom; # Foot switch; 5 - Supply range # Hydraulic type fit-up turning roll 1set # Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set # Technical documents (with manual book, conformity certificate, packing list, etc) 1set 6 - Reference photo 7 - Comparative advantage # ISO9000&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
