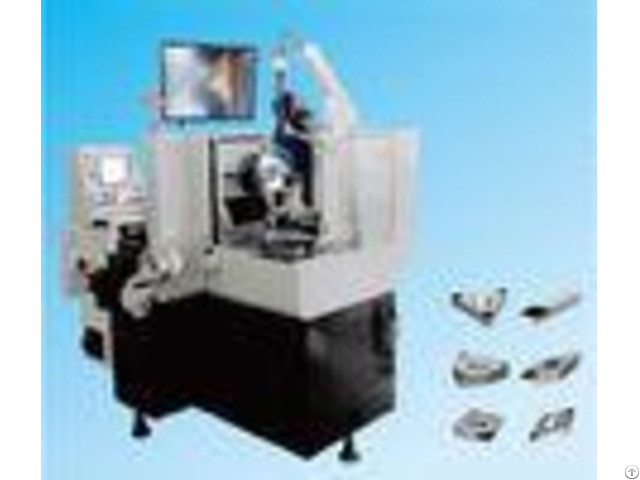

Semi Automatic Tool Grinding Machine For Cutting Pcd Pcbn Cvd Tungsten Carbide - China
price: 1.00 Dollar US$
Semi-automatic tool grinder machine is designed for cutting PCD, PCBN, CVD, tungsten carbide Main Technical Parameters: 1 - Spindle and Grinding Wheel - - - - Diameter of Grinding wheel | 150mm | Direct Drive Spindle with Water Cooling | 3KW | RPM of Grinding Spindle | 03, 000RPM | Changeable Clearance Angle | -5~25 | Grinding wheel center hole | 40mm | Spindle Center Height | 150mm | - - - - 2 - Grinding Wheel Oscillation System(X Axis) - - - - PLC Numerical Controlled Oscillation and Control on the Panel | Max.
Oscillation Range | 30mm | Max.
Oscillation Frequency | 60times/min | - - - - 3 - CCD Monitoring System - - - - Max Magnification of Optical Microscope | 4 times | Magnification of CCD Measuring System | 80times | Industrial Displayer | 15 | CCD Image Resolution | 1280*1024 | - - - - 4 - Feed and Rotation System - - - - Compressor of Air Braking on Rotation Axis | 6bar | Tool rotation (B axis) controlled by PLC.
Can be switched to manual mode.
| LCD input | Horizontal Transverse (Y Axis) Driven by Air | 70mm | Linear Encoder Resolution (X Axis and Y Axis) | 0.001mm | - - - - 5 - Power Supply and Dimensions - - - - Coolant Tank with Filter Paper | about70L | Electrical Supply | 12Kw | Voltage Requested | 380V/Three phase /50Hz | Overall Dimensions LWH | 170011501970mm | Weight With Coolant Tank | 2000Kg | - - - - Technology breakthrough: 1 - Dual-position design: the machine's two stations, can easily operate and observe.
Positive station (axial grinding wheel) to avoid splashing water; side to facilitate the cutting knife and knife and other special tools, grinding.
2 - Vertical axis optimization: the micro-adjustment of the vertical axis into the work table in the fixture, greatly enhanced the stability and rigidity of the equipment.
Company Contact:
- Posted By: Jiangsu Qiangli Machinery Co.,Ltd
- Phone: 86-510-82736946
- Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China
- Email:
- Website: https://www.qianglimachine.com
Published date: February 9, 2018
- Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
