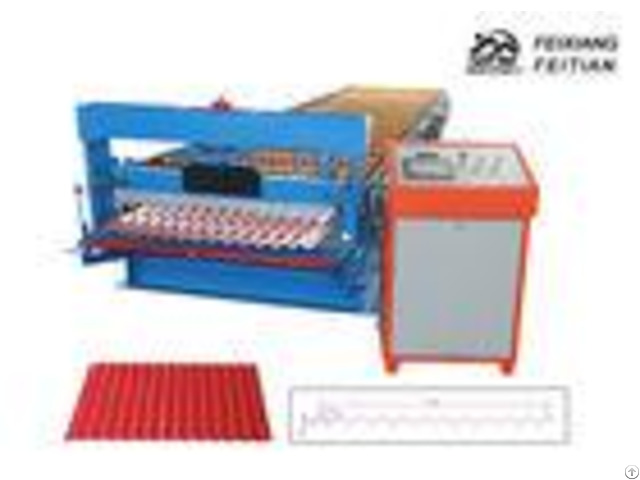

Fx850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine 380v 50hz 3p - China
price: check with company for price
FX850 Color Steel Trapezoidal Corrugated Sheet Roll Forming Machine ISO Approved Machine working flow chart: Suitable forming material attribute: Material: Color steel, galvanized steel or Aluminum, (for G550 please let us know in advance) Feeding width: 914mm Material thickness: 0.2-0.8mm or 0.3-1.0mm Yield strength: 235-450mpa Device info: Brand: Feixiang Model number: FX860 Machine size: 5.8*1.5* 1.3M(L*W*H) Weight: 4.2T Voltage requirement: 380v50hz3p or as request Working speed: 12-18m/min Machine whole line: Part 1 - Manual Deciler(Or Automatic hydraulic decoiler) Part 2 - Main forming machine Part 3 - Hydraulic pump Part 4 - Plc control system Part 5 - Cutting device Part 6 - Manual Table(or Automatic stack machine) Main technical parameters: Machine base: 350# steel welded Frame: Steel plate screwed Forming stations: 11 steps Roller: 45# steel with quenching HRC 40-45 Shaft: 45#steel, diameter 80mm Gear: SKF Chain: 1 Inch PLC: Panasonnic(or Schneider, Delta.
) Motor: Siemens, 4kw Counter : Chint(or Kubler.
) Pump: Yuken 4kw Cutter: Cr12 HRC 58-62 After sale service: Warranty: 1 year After-sales service: 24h*7days*1years on line and engineer service overseas Spare parts we provide for free: - - - - 1 | Machine | electric and hydraulic easy damage parts | 2 | Operate tool | spanner, pilers, screw and so on | - - - -
Company Contact:
- Phone: 86-317-8293238
- Address: No.88,yingbin road,industrial development zone,botou city,hebei province, Hengshui , Hebei , China
- Email:
Published date: March 28, 2018
- Business Description: The company currently has 2 invention patents, 1 utility model patents, has been accepted by the 1 invention patents, 2 utility model patents.
Feixiang says keeping customers satisfied is " at the heart of the Feixiang roll forming machinery customer-care philosophy".
