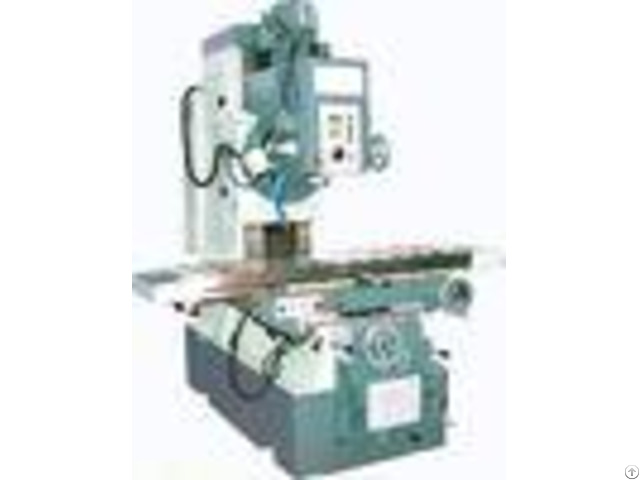

Bed Type Conventional Metal Milling Machine 1400 X 400mm Size With The Iso50 Spindle - China

XA7140 bed-type conventional metal milling machine with the ISO50 spindle Main features: 1 - Solid, grey cast iron construction allows heavy table load 2 - Large flat guide guarantees stability at heavy milling 3 - Handwheel allows feed (100 mm) of oversize spindle 4 - Polished table, supported well by wide saddle 5 - Wide speed range (20 - 1800 rpm) feat.

high torque and spindle brake 6 - XA7140 Chinese bed-type conventional metal milling machine with Stepless speed adjustment comes standard 7 - Inductive hardened and polished guide ways 8 - Reinforced saddle in robust box construction 9 - Column and machine stand are solidly designed Main specification - - - - XA7140 Chinese bed-type conventional metal milling machine | Specifications | Units | XA7140 | Table size | mm | 1400400 | Table travel | mm | 800400 | Number/Width/Distance of T-slot | mm | 3-18-100 | Max.

load of table | kg | 800 | Distance from spindle axis to column guideway | mm | 520 | Distance from spindle nose to table surface | mm | 150-650 | Spindle taper | | ISO50 | Quill travel | mm | 105 | Spindle speed range (infintely variable speed) | rpm | 18-1800 | Overall dimension | mm | 229018402120 | Spindle motor power | kW | 7.5 | Machine weight | kg | 3860 | - - - - Standard accessoires : 1 - Drawbar M 10 / M 12 / M 16 / M 24 2 - WORK light 3 - Coolant device 4 - Taper shell end mill holder ISO 50 / 40 mm 5 - Adapter ISO 50 / MT 4 6 - Central lubrication 7 - Telescope cover in z-axis 8 - Stepless speed adjustment 9 - Anchor bolts 10 - Universal protective device 11 - Tools Optional accessories: 1 - Mill chuck set ER 40, ISO 50, 3 - 25 mm, 16 pcs.

2 - Horizontal & vertical rotary table HV 12 - 300 mm 3 - Tiltable rotary table TSK 320 4 - Semi-universal dividing head BS-1 5 - Deluxe clamping kit set 58 pcs., 18 mm, M 16 6 - Two-parts milling vise MS 200 7 - Hydro machine vise AH 200 with swivel base 8 - Hydro machine vice VH 200 with swivel base Packaging & Delivery - - - - Packaging Details | Standard export ply/wcase package Overall dimension: 2290x1840x2120m m XA7140 Chinese bed-type conventional metal milling machine | Delivery Time | 30 days | - - - -

Company Contact:

• Posted By: Jiangsu Qiangli Machinery Co.,Ltd

• Phone: 86-510-82736946

• Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China

• Email:

• Website: https://www.qianglimachine.com

• Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
