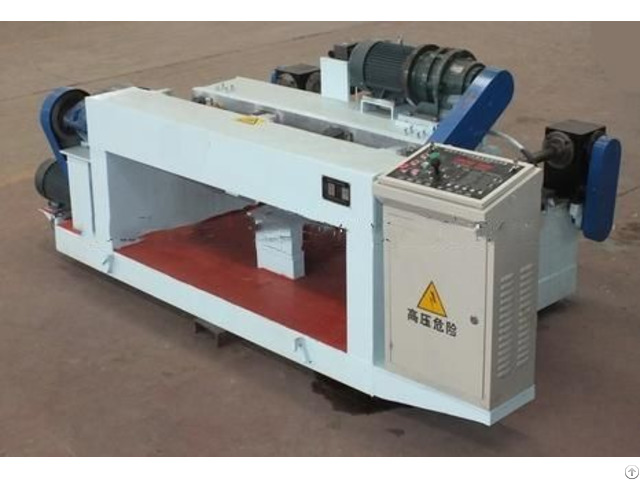

Spindleless Peeling Machine For Plywood Veneer - China

Type: Horizontal Lathe

Voltage: 380V

Tool Holder: Single-tool Holder CNC Lathe

Automatic Grade: Automatic

Precision: High Precision

Setting Mode: Floor-type

Main features:

1.2018 all new generation research & design SPECIAL FOR HARD WOOD.

2 - Fastest veneer peeling speed can reach to 100M/MIN.

3 - Save 40% - 60% of power, reduce production cost.

4 - Veneer double sides smooth and thickness evenness less than 0.05mm.

5 - Double motors rollers, speed stable, overcome the unstable Indian voltage.

6 - Bigger power inverter and English language PLC control system.

7 - Clipper inbuilt design, peeling and clipping at same time.

8 - Automatic electrical lubrication system for all important mechanical parts.

9 - Automatic air cylinders dropper for final log to save production time.

10 - R87 harden helical gear speed reducer and Japan NSK bearings.

11 - Automatic final piece veneer holder device.

12 - Full closure oil immersed screws, wear-resisting, maintenance -free.

13 - Exclusive manufacturer adopt the full closure oil immersed guide bar(quenching process treatment), all working life free maintenance, promise the machines feeding at most stable Condition, so that can get the best quality veneer.

Technical specifications: Machine model BXQ1814/50HK Max.

peeling length 1400mm Roller length 1500mm

Max.

peeling diameter Φ500mm Max.

opening Φ550mm

Min.

peeling diameter Φ28mm Cross roller can be Φ 26mm

Peeling speed range 0-120m/min Frequency adjustable speed

Veneer thickness range 0.5-6.0mm Double sides smooth

Double rollers motor power 7.5Kw + 7.5Kw Germany Siemens

Single rollers motor power 5.5Kw + 5.5Kw Germany Siemens

Feeding motor power 7.5Kw Servo motor

Veneer clipper motor power 2.2Kw Germany Siemens

Veneer conveyor motor power 2.2Kw Germany Siemens

Double rollers speed reducer R87 harden helical First class grade, casting steel.

Single rollers speed reducer R87 harden helical First class grade, casting steel.

Feeding screw speed reducer R87 harden helical First class grade, casting steel.

Rotary clipper speed reducer φ90 big square First class grade, casting steel.

Rollers specification Φ125mm diameter High frequency quenching treat

Two sections, thicker chroming.

Machine structure material Q235B 40mm thickness steel plate

Peeling knife size 1500x180x16mm Japan tech

Clipper knife size 1400x100x13mm Japan tech

Machine overall dimension 4500x1900x1500mm Installation dimension

Machine weight 7000Kgs Net weight

Company Contact:

• Posted By: Linyi Metro Int'l Trading Co., Ltd

• Phone: +8615254920677

• Address: Beiyuan Rode, Linyi , Shandong , China

• Email:

• Business Description: Linyi Metro Machinery Co., Ltd was founded in 1989 year, the earliest and biggest professional manufacturer of all kinds of wood-based panel machinery.

  Our featured products include:

  1 - Face veneer rotary peeling production line.

  2 - Face veneer slicer peeling production line.

  3 - Plywood complete production line.

  4 - Particleboard / chipboard production line.

  5 - MDF/HDF production line.

  6 - Melamine lamination hot pressing line.

  7 - LVL complete production line.

  We have two factories and one exporting company(Linyi Metro Int'l Trading Co, Ltd), our machines are widely used in more than 100 countries and helped customers to produce top quality wood based panels and occupy the good market.

  We can design and manufacture all specifications machines to meet customers' production demand, professional after-sales team consisted of 20 rich experienced engineers are ready for any countries for machines installation and debugging service.

  Welcome to visit our company, we will try our best to support your company.
