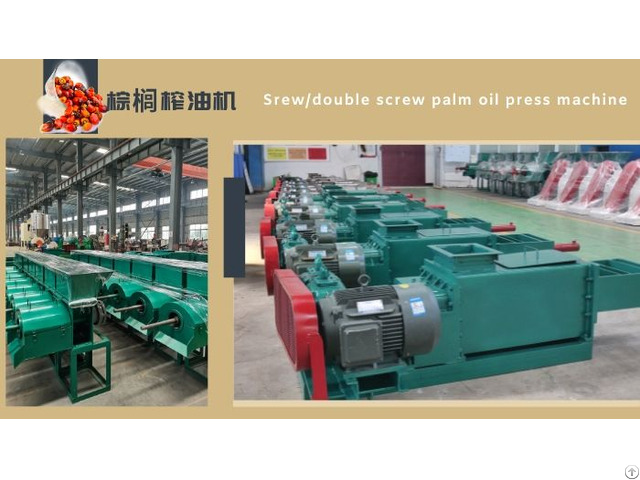

Between Single And Double Screw Palm Oil Press Machine - Chinaprice: 1400.00 Dollar US$
1 - Same screw material
Single screw and double screw oil extractor screw are using 2CR13, wear-resistant alloy steel, one-piece casting process.
2 - Same residual oil rate
Both types of machine have been tested many times, low residual oil rate, and ensure the integrity of the nuclear.
Because if the core is damaged, there could be palm kernel oil production.
Palm oil and palm kernel oil are two completely different oils that, when mixed together at random, are called “Gutter oil, ” so nuclear integrity is important, and both types of machines guarantee the quality of the oil.
3 - Same manufacturer
Both machines are manufactured by Doing Holdings factory.
1 - Different processing capacity
In fact, the processing capacity of a 1T/H double screw oil press can reach 1-2 tons, while a 500kg/H single screw oil press can reach up to 500 kg.
Purchase a 1T/H double screw oil press for post-processing it can continue to be used when the volume reaches 2 tons, and this machine can be used not only as a stand-alone machine, but also with a production line.
2 - Different machine design and structure
The 500kg/H single screw oil press mainly has a main engine + power system.
The main engine includes a screw press, a press chamber, a spring, and a cake cone.
The main engine + power system + gear box + hydraulic cylinder of the 1T/H double screw oil press, two cake cones, and a hydraulic pump.
The tail of the 1T/H double-screw oil press is equipped with a gear box combined with a hydraulic pump station to drive the two screw presses to rotate relative to each other to bite the mixing blades and output oil.
The oil rate is lower, it is less likely to be blocked, and it is more labor-saving, which is more conducive to the smoothness of palm fruit pressing, improves the oil yield, and ensures your high income.
First of all, the material surface of the internal screw is smoother, and the double screw is upgraded from the single screw.
The two opposing screw shafts of the snail are used to mesh with each other in the press chamber to generate a continuous pushing force to squeeze and cooperate with the press cage to squeeze out the grease in the embryo.
The design of the double helix structure allows the machine to obtain strong radial pressure, so that the oil can be pressed as much as possible, and the pressing is more thorough, and the residual oil rate of the dry cake is lower than that of the single screw oil press.
3 - The amount of steel used is different
The overall steel consumption of 1T/H double screw oil press is more than 500 kg, the motor of 500kg/H single screw oil press is 4KW, and the motor of 1T/H double screw oil press is 7.5 KW, the manufacturing cost is naturally higher.
4 - The details are different
Pressure regulating equipment, 1T/H double screw oil press, equipped with hydraulic pump station (pressure is 100Mpa) and hydraulic cylinder, the pressure can reach 1-2 tons, the pressure of hydraulic pump is 100Mpa, The 500kg/H single screw oil press uses a spring to adjust the pressure, and the pressure provided is less than that of the hydraulic pump station, and the hydraulic pump station is more expensive and more expensive.
The hydraulic pump station has an automatic control lever, the main purpose is to achieve a more powerful and stable operation of the oil press when the palm fruit is pressed, and the pressing effect is better.
Compared with the manual adjustment of the spring pressure of a 500kg/H single screw oil press, the operation is simpler and more stable, and the hydraulic pump station can detect the pressure in the chamber in real time and adjust it in time.
