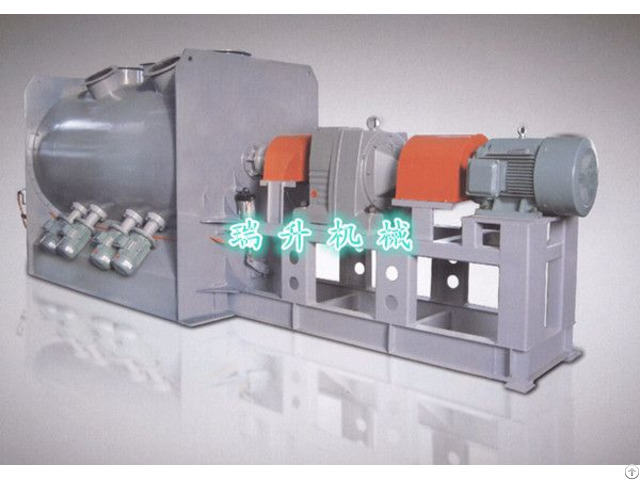

Powder Horizontal Plough Shear Coulter Ploughshare Mixer - China

Stainless steel high efficiency powder horizontal durable plough shear mixer, coulter mixer, ploughshare mixer Description : Stainless steel plough shear mixer is circular type, each plough blade shaft with one shaft.

Plowshare or bevel-cutter is installed on mixer shaft to avoided dead corner when material start to work, such as radial and length wise direction.

Material keep turbulent flow way.

It is widely used for gypsum power, solid-liquid, solid-thick liquid material mixing.

It can be continuous work.

Drum type chamber, with fly cutters inside.

Material can be mixed equality in short time by fly cutters rotate along with high speed.

Plough or sloping blades are set on single shaft.

When plough mixer is on operation, special structure leads the material to be continuously mixed.

With radial and longitudinal movement simultaneously, dead corner is avoided and thus high accuracy mixing is achieved.

Plough mixer keeps material onflow.

Because of high speed and shapes of plough agitator, centrifugal vortex action, Material in plough mixer makes three-dimension movement and is mixed together.

This type of mixer is fit for dry powder, granule, small fibre, liquid and paste with low viscosity.

Features: a.

Wide application and multi-function mixture b.

Short mixture time, good cutting effect c.

No materials blocking or clotting d.

Fly cutter to improve mixing efficiency Functions : a.

Manual discharging, pneumatic discharging, electric discharging for option.

b Knife-edge/butterfly types valve for option c.

With jacket to heating and use heat insulation for external according to process requirement d.

The wetted parts is carbon steel, SUS304 or SUS316 for option e.

Custom-made service is available as details requirement
