Jet Mud Mixer

Solid Control Equipment

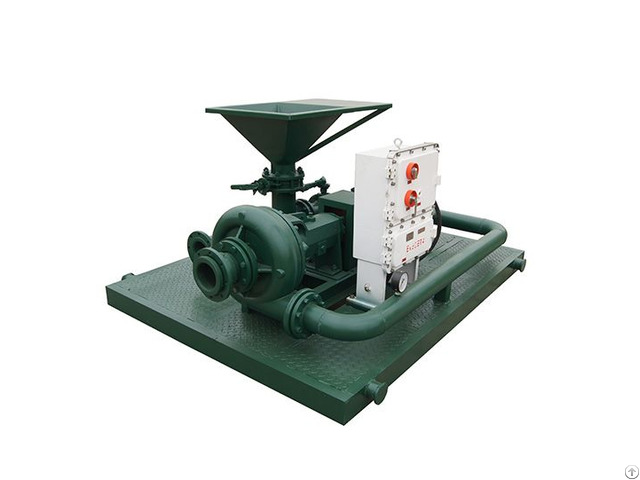

High Quality Jet Mud Mixer

Jut mud mixer is a specialized solids control equipment used for configuring and aggravating drilling fluid, thus change the density, viscosity and pH of drilling fluid.

DC uses venturi tube combined with original jet nozzle created a new design of jet mud devices, not only simple in structure, but also have strong feasibility, which can meet the aggravation and configuration of drilling fluid in drilling solid control system from 1500m to 9000m.

We can also produce double jet mud mixers according to customers' requirements.

Jet mud mixers produced by DC have the advantages of high mixing speed, safe and reliable performance, long service life and ect.

Model DCSLH150-50 DCSLH150-45 DCSLH150-35 DCSLH100-25 DCSLH100-25

Treating Capacity 230-375m3/h1012-1650GPM 140-230m3/h616-1012GPM 120-210 m3/h528-924GPM 70-110 m3/h308-484GPM 30-60m3/h132-264GPM

Matching Pump SB8 x6-13-55kW SB6 x5-13-45kW SB6 x5-12-30kW SB5 x4-12-22kW SB4 x3-12-15kW

Pressure 0.25~0.40Mpa

Feed Inlet 6〃(150) 6〃(150) 6〃(150) 4〃(100) 4〃(100)

Inlet Diameter 8〃 6〃 6〃 5〃 4〃

Outlet Diameter 5〃 5〃 5〃 4〃 4〃

Hopper Size 600x600mm 600x600mm 600x600mm 500x500mm 500x500mm

Mixing Speed 100kg/min 80kg/min ≤80kg/min ≤60kg/min ≤40kg/min
