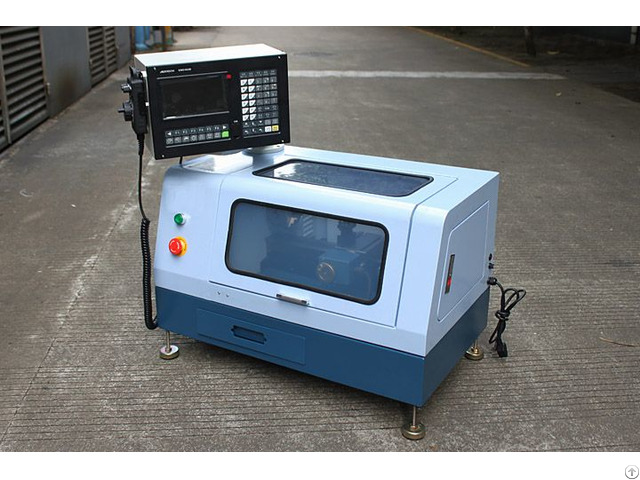

Small Mini Type Cnc Desktop Lathe For Hobby - China

Product No：CK140

Product Name：Micro CNC Lathe Features

(1).

Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas

(2).

High performance 2 axis cnc lathe controller.

(3).

USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.

(4).

Network interface, supporting for remote monitoring and DNC file transfer processing.

(5).

Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.

(6).

Macro variable, macro definition programming, realizing a variety of logical relations.

Support macro program with parameters, convenient to the user programming.

(7).

DXF+G code template function, converting DXF automatically to G code for processing.

(8).

Teaching function: Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.

(9).

Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.

(10).

Multi interface selection: support multi language interface display, automatic fault alarm.

Processing information display, processing time, the number.

(11).

Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.

(12).

7 inch super large colorful(800*480) LCD screen.

(13).

Control speed of G code.

(14).

Selection of high -quality casting materials, more compact.

(15).

A collection of double-nut ball screw, bearings and couplings with high precision positioning.

(16).

220V single-phase AC power supply.

(17).

Safety electrical components of high quality.

(18).

Manual tool post.

(19).

Auto power off when door open.

(20).

Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters

Turning diameter over bed(max) 140mm

Travel across slide 75mm

Chuck diameter 80mm

Spindle speed 100-2000r/min(control speed of G code)

Spindle through-hole 11mm

Spindle mount MT2

Spindle motor power 150W

X travel 70mm

Z travel 160mm

The max moving speed 2000mm/min

The max feeding speed 1000mm/min

Control system Adtech 4620, Optional siemens 808D or GSK980TB3 cnc controller

Instruction DXF+G code template function, converting DXF automatically to G code for processin

Tool dimension 8×8mm

Tailstock taper MT1

Tailstock sleeve diameter 20mm

Travel of tailstock 25mm

Positioning accuracy 0.02mm

Repeatability accuracy 0.02mm

Power 220V/110V

Weight(NW/GW) 50/65KG

Overall dimension 750*450*450mm

Packing size 850*470*470mm
