Resolution 0 1hr Touch Screen Digital Rockwell Hardness Tester With Built In Printer - China
price: contact company for price

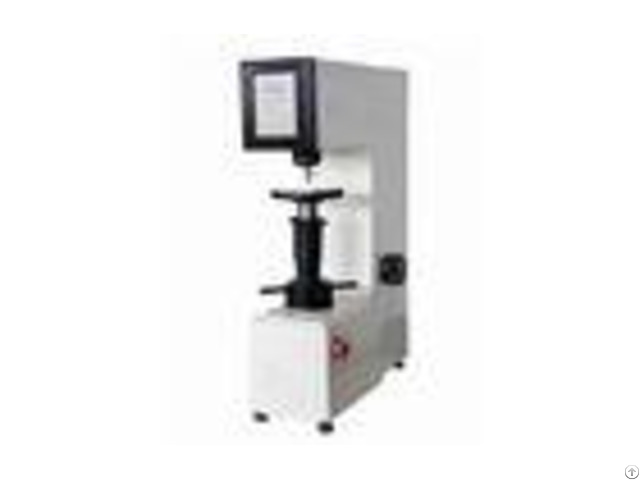

Resolution 0.1HR Touch Screen Digital Rockwell Hardness Tester with Built-in Printer iRock-432T Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display.
iRock-432T can show and set the present scale, test force, test indenter, dwell time and hardness conversion.
The main functions as follows: Support all the Rockwell scales; With hardness conversion among all metal hardness scales; Adjustable back light with energy-saving mode; Real time data saving in the folder, totally six folders, the data can be arbitrary copied, cut, deleted, pasted; the hardness scale, data range and the remarks can be selective displayed, similar to Excel function; Test results can be saved in real time and can be selective checked and printed out, automatic calculation of maximum, minimum and average value; Increase the operation process interface, easy to use; With RS232 interface for connecting to the computer.
Application range: Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification: - - - - Model | iRock-432T | Initial Test Force | 10kgf (98.07N) | Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) | Indenter | Diamond Rockwell Indenter, 1.588mmBall Indenter | Loading Method | Automatic (Loading/Dwell/Unloading) | Hardness Reading | Touch Screen Display | Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV | Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW | Data Output | Built-in Printer, RS232 Interface | Resolution | 0.1HR | Dwell Time | 0~60s | Max.
Height of Specimen | 175mm | Throat | 165mm | Power Supply | AC220V, 50Hz | Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 | Dimension | 520215700mm, Packing Dimension: 650370950mm | Weight | Net Weight: 78kg, Gross Weight: 100kg | - - - - Packing List: - - - - Name | Qty | Name | Qty | Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc | 1.588mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc | Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc | Hardness Block 60~70 HRC | 1 pc | Hardness Block 20~30 HRC | 1 pc | Hardness Block 80~100 HRB | 1 pc | Weight A, B, C | 3 pcs | Power Cable | 1 pc | Fuse 2A | 2 pcs | Level | 1 pc | Horizontal Regulating Screw | 4 pcs | Screw Driver | 1 pc | Spanner | 1 pc | Anti-dust Cover | 1 pc | Usage Instruction Manual | 1 copy | - - - -
Company Contact:
- Posted By: DongGuan Q1-Test Equipment Co., Ltd.
- Phone: 86-769-22179727
- Address: No. 88, Jiaolian Yiheng Road, Wanjiang district, DongGuan, China (523046), DongGuan , guangdong , China
- Email:
Published date: March 1, 2018
- Business Description: DongGuan Q1-Test Equipment Co., Ltd .
Mainly specialized in manufacturing, developing and marketing various environmental testing equipment like programmable temperature and humidity test chamber QTH series, industrial drying oven, burn-in chamber, salt spray/corrosion test chamber QCC series.
