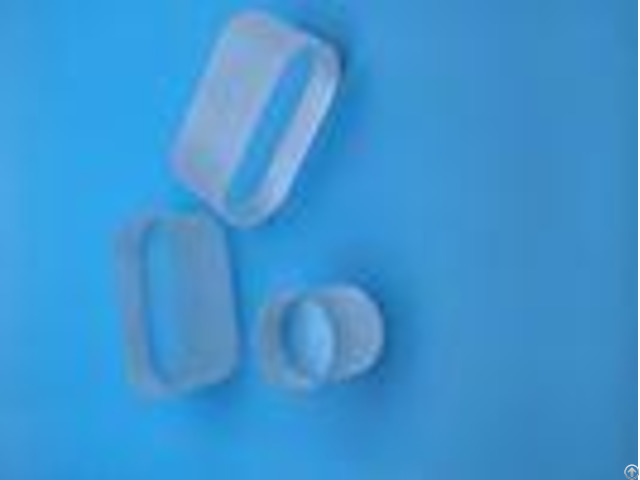

Protective Cover Glass Sapphire Optical Windows Wear Corrosion Resistance - China

wear corrosion resistance customized shape ship shape thickness 40mm Al2O3 crystal sapphire optical glass lens 1 - Sappphire applications # Growth substrate for III-V and II-VI compounds # Electronics and optoelectronics # IR applications # Silicon On Sapphire Integrated Circuit(SOS) # Radio Frequency Integrated Circuit(RFIC) # wear corrosion resistance optical lens for protective cover glass # sapphire bearing sapphire ball &Radiating ceramic substrate # Sapphire windows replace quartz in someextreme environment 2 - Sapphire substrates on LED epi-ready 3 - Comparison of optical window materials - - - - Material | Properties | Applications | BK7 | Transmission Range: 330-2100nm Refractive Index: 1.5164@588nm | Most popular and low cost Visible and near IR spectrum applications | Fused Silica | Transmission Range: 185-2500nm Refractive Index: 1.4858@308nm Low Thermal Expansion Coefficient: 0.54 x 10-6K | UV to IR spectrum Best choice for thermal resistance application.

| Sapphire | Transmission Range: 180-4500nm Refractive Index: 1.755@1000nm Strong Hardness | Best choice for scratch resistance applications Thinner optics Wide Transmission Range | Calcium Fluoride | Transmission Range: 170-7800nm Refractive Index: 1.399@5000nm Little Hygroscopic Susceptibility High Thermal Expansion Coefficient: 18.85 x 10-6K | IR laser applications | MgF2 | Transmission Range: 120-7000nm Refractive Index: 1.376@700nm | UV laser applications | - - - - 4 - PicturesSize For Sapphire Lens and common size Materials: 99.999 sapphire optical grade, no bubble, color and[crystal boundar].

size: length90xwidth40mmx thickness 40mm, (dia0.5~400mm ok ) Orientation: C(0001)1, (A, R, M each ok) Tolerance: 0.05mm (0.01mm ok) surface: double side poshlied Ra: 0.5nm(0.3nm ok) SD: 40/20, 60/40 Flatness : 1/2L Other Products we can provide a variety of types of optical products, including ball lens, powell lens, optical mirrors, optical windows, spherical lens and cylinder lens, We have ability to process high-precision micro lens and can customized various of the sapphire products according to the customer.

.

FAQ: Q: What's the way of shipping and cost? A: (1) We accept DHL, Fedex, EMS etc.

(2) it is fine If you have your own express account, If not, we could help you ship them and Freight is in accordance with the actual settlement.

Q: How to pay? A: T/T, Paypal, Secure payment and Assurance payment.

Q: What's your MOQ? 1 - For customized products, the MOQ is 3pcs up for this type.

2 - if other standard 2inch 3inch, 4inch MOQ is 25pcs .

Q: What's the delivery time? A: (1) For the standard products For inventory: the delivery is 5 workdays after you place the order.

For customized products: the delivery is 2 -4 weeks after you order contact.

Q: Do you have standard products? A: Our standard products in stock.

as like substrates2inch 0.43mm 1sp or 2sp thickness each orientation in stock.

>>Packaging Logistcs we concerns each details of the package, cleaning, anti-static, shock treatment .

According to the quantity and shape of the product, we will take a different packaging process!
