Pressure Flow Control Portable Hydraulic Pump Ha10vso Dflr 200 L Min - China
price: contact company for price

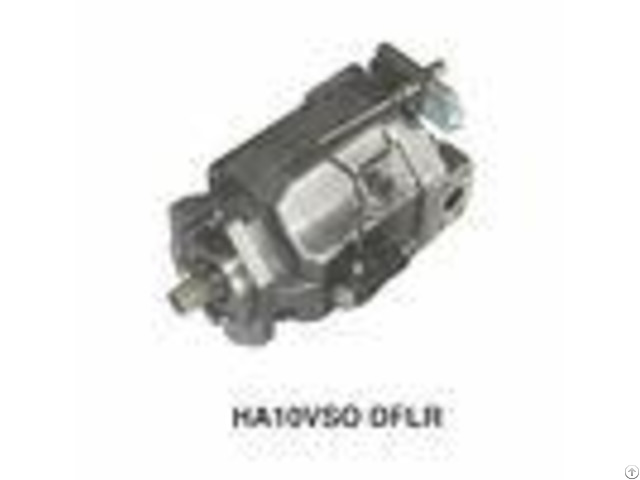

200 L / min Pressure / Flow Control Hydraulic Piston Pumps HA10VSO DFLR Descrition: Axial piston pump, displacement is 100cc.
Pressure, Flow, torque control Clockwise Rotation Perbunan seals Splined shaft SAE 2 hole UNC inch thread Side port type, single pump Application: Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system.
Excavator, Loader Competitive Advantage: Good quality, Competitive price, Quick delivery, good service.
Low noise and small volume - - - - Sizes | | | | 16/18 | 28 | 45 | 71 | 100 | 140 | Displacement | | Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 | Max speed | | nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | Max.
flow | in nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 | in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | (p=280bar) Max.
power | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 | in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | Max.
torque (p=280bar) | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 | Weight | | m | Kg | 12 | 15 | 21 | 33 | 45 | 60 | - - - -
Company Contact:
- Posted By: HEFEI SJ HYDRAULIC CO., LTD
- Phone: 86-551-62939227
- Address: No.1003,11 Building,Chunrong Center,Binhu Century，Baohe Area, Hefei city, China, Hefei , Anhui , China
- Email:
- Website: https://www.orbit-hydraulicmotor.com
Published date: February 9, 2018
- Business Description: Hefei SJ Hydraulic Co., Ltd is a famous supplier on hydraulic pump , valves, orbital motor and steering in China and worldwide ， SJ Hydraulic always keep the faith of credibility and customer firstly, also try to supply excellent products, reasonable price and best service for worldwide customers .
