High Efficiency Hmm Series Orbit Hydraulic Motor Pressure 14 Mpa 500 2450 Rpm - China

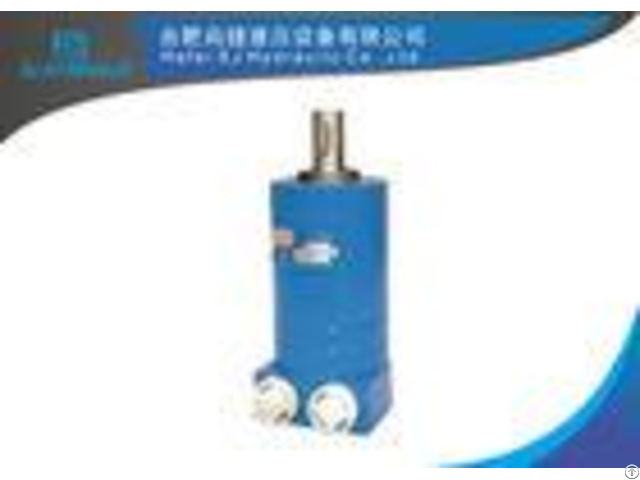

HMM motor - - - - Model HMM | Displacement cc | Input pressure cont.

bar | Differential pressure cont.

bar | Flow cont.

lpm | Torque cont.

Nm | Speed max.

rpm | Power max.

Kw | Weight Kg | 8 | 8.2 | 140 | 100 | 16 | 11 | 1950 | 2.3 | 2 | 12 | 12.9 | 140 | 100 | 20 | 16 | 1550 | 2.3 | 2 | 20 | 19.9 | 140 | 100 | 20 | 25 | 1000 | 2.3 | 2.06 | 32 | 31.6 | 140 | 100 | 20 | 40 | 630 | 2.3 | 2.15 | 40 | 39.8 | 140 | 90 | 20 | 45 | 500 | 1.8 | 2.2 | 50 | 50.3 | 140 | 70 | 20 | 46 | 400 | 1.8 | 2.25 | - - - - Highlights 1 - Spool valve design and Gerotor gear set hydraulic motor with compact design and small displacement 2 - Suitable for applications where high speed and small dimensions are required Description 1 - Hydraulic motor with solid gear ring and drum distributor valve for open and closed circuit, suitable for continuous operation at medium pressure or short-term operation at high pressure 2 - Double shaft seal to protect the main seal from dust and other contaminants 3 - Integrated non-return valves (standard) to reduce the maximum case pressure with closed drain port 4 - External drain connection in the end cap to relieve the case pressure 5 - Very compact dimensions and high permissible speeds 6 - Smooth running operation and constant torque over the entire speed range Characteristics 1 - Small volume, high efficiency, high speed, long service life.

2 - Shaft seal pressure is high, can be used series and parallel.

3 - Compact structure design is advanced, the power is great.

Competitive Good quality, complete series, competitive price, best service, long warranty period.

Applications Engineering machinery and agricultural machinery.
