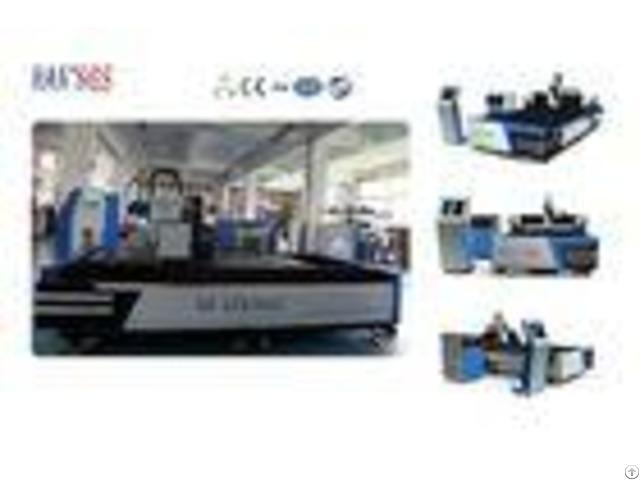

Hans Gs 500w Fiber Laser Cutting Machine For Metal Sheet And Tube Pipe - China

HANS GS Fiber Laser Cutting Machine Price, Laser Cutting Machine for Metal Laser Source Power/Cutting ability - - - - Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) | 500W | Max cutting thickness | 8 | 4 | 2 | 2 | Max processing thickness | 5 | 3 | | | 700W | Max cutting thickness | 10 | 6 | 3 | 3 | Max processing thickness | 6 | 5 | | | 1000W | Max cutting thickness | 14 | 8 | 4 | 4 | Max processing thickness | 8 | 6 | | | 1500W | Max cutting thickness | 16 | 10 | 6 | 5 | Max processing thickness | 12 | 8 | | | 2000W | Max cutting thickness | 20 | 12 | 8 | 6 | Max processing thickness | 16 | 10 | | | 2500W | Max cutting thickness | 22 | 12 | 10 | 8 | Max processing thickness | 20 | 10 | | | 3000W | Max cutting thickness | 25 | 14 | 12 | 8 | Max processing thickness | 22 | 12 | | | - - - - Fiber Laser cutter machine is widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

We provide you Laser cutter quotations to you, 3D Robot Laser cutter price, Metal Sheet Laser Cutter, Metal Tube Laser Cutter price.

We have 20 years of experience in laser equipment production, The main products are laser cutting machine, laser welding equipment, laser perforating equipment, laser cladding equipment.

We are a factory in China specializing in the manufacture of laser equipment, such as laser cutting machine: 3D Robot Laser cutter, Metal Sheet Laser Cutter, Metal Tube Laser Cutter, laser welding machine, laser cladding machine, laser perforating machine etc.

We have 20 years of experience in laser equipment production.

We provide you 500W to 3000W Fiber Laser Cutting Machine FOB/CIF/C&F/EXW PRICE.

CNC Fiber Laser Cutting Machine For metal cutting.

We want know the following informations: 1 - What kind of material do you want to cut? 2 - What is the mostly used thickness and what is the maximum thickness? 3 - What is the MAX.

dimension of your materials ? 4 - After cut, what will be the metal used for? (application) 5 - Are you an end user or reseller? According to your above information, we'll recommend the most suitable machine to you.

- - - - Model | GS-LFD3015(Dual Drive) | Output power of laser source | 500/1000W | Cutting area (L*W) | 3000mm 1500mm | Z axle stroke | 150 mm | Max.

cutting speed | 40m/min | Max.

positioning speed | 80m/min | Platform size/Max height of feeding material | 4250x2500mm/more than 120mm | Cooling | water cooling | Laser wavelength | 1070nm | Cutting gap | 0.1-0.3mm | Positioning accuracy of X, Y and Z axles | 0.03 mm | Repeated positioning accuracy of X, Y and Z axles | 0.02 mm | Thickness of cutting material (according to material) | 0.2-12mm | Drive model | Imported servo motor | Voltage | 380V, 50/60Hz | Temperature | 5C-45C | Continuous working time | 24 Hours | Wok platform max bearing | 600Kgs | Complete System Coverage | 4500x2700mm | Total protection level of power supply | IP54 | - - - - Cutting Simples It is used to cut Metal, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.

We are honored to offer you samples.

New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.

Our Company WUHAN HANS GOLDENSKY LASER SYSTEM CO., LTD. is a subsidiary of Han's Laser, located in East Lake High-tech Development Zone, "China Optical Valley", Wuhan.

It's subsidiary company of HAN'S Laser Technology Industry Group Co., Ltd, (stock code: 002008).

We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine.

We also provide automatic processing solving plans.

We have 20 years of experience in laser equipment production, The main products are laser cutting machine, laser welding equipment, laser perforating equipment, laser cladding equipment.

Welcome come to our factory.
