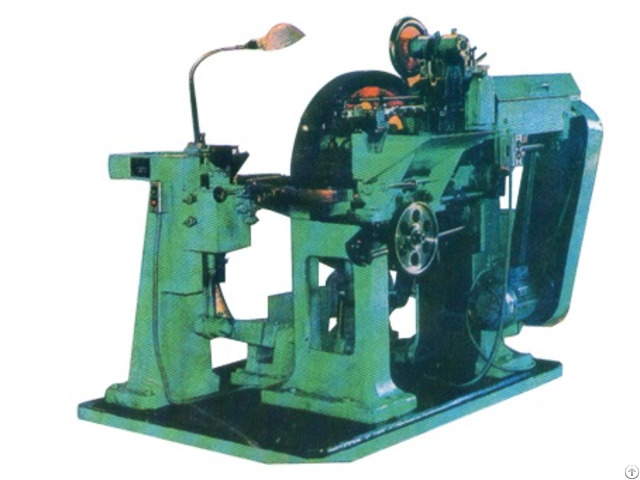

Zf 93 Model All Purpose Spoke Combination Machine - China
price: 12000.00 Dollar US$
erformance Characteristic
ZF-93 model spoke combination machine is integrated the characters of other model spoke machines.
It's one of the best applied spoke machines which are researched and designed by us.
And this equipment can produce all kinds of spoke according to customer's demands, so it's really a perfect machine for spoke manufacturer.
Main technical parameter
Number Item Unit Parameter
No.
1 Diameter of wires mm 1.84-5
No.
2 Cut-off length mm 140-320
No.
3 Feed-in Pieces Pcs/min 90-130
No.
4 Nob, bend, tread rolling Pieces Pcs/min 90
NO.
5 Electromotor Power straighten/feed-in Kw 2.2
nob, bend, tread rolling Kw 3
No.
6 Dimension(LxWxH) mm 1580x1400x1430
No.
7 Weight Kg 2280
Company Contact:
- Phone: 0086-13891960149
- Address: No.989 North of Weihai Road Bencha Town Rudong , nantong , jiangsu , China
- Email:
Published date: May 31, 2016
- Business Description: Main Products: Spoke Machine, Straightener, Cutter, Spoke Thread Rolling Machine
Our company has been dealing in machinery manufacturing for so many years.
And "NTH" series machine, such as spoke combination machine, automatical straightener & cutter, diameter-varying machine, thread rolling machine, spoke parent machine and floorslab molding machine, cutting machine, axial flow thresher machine etc.
Have been sold to more than twenty provinces & cities in China.
The company is powerful& has strong technology.
It has been recognized as "Nantong City Civilized Company", "Honor the contract and keep the promise Company of Jiangsu Province" and authorized as "Good Overall Quality Control Company" by Chinese agriculture dept.
