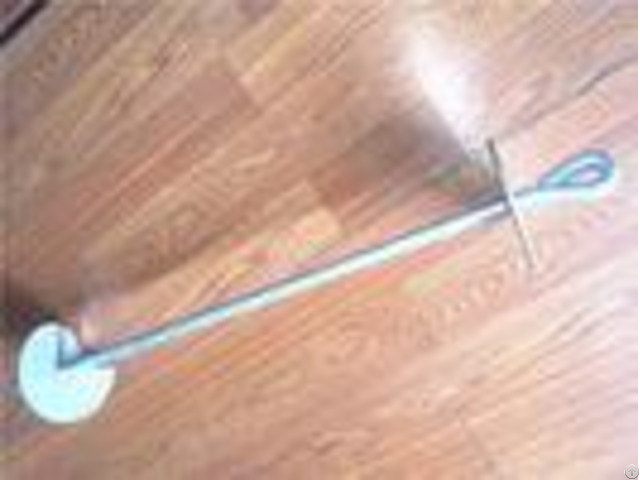

Welded Eye Forged Earth Ground Anchor Helical Screw Anchors Carbon Steel Material - China

5/8*30" welded eye earth screw anchor with helix anchor for earth anchors Product Description Our earth anchors are made of high quality steel with a center or offset eye then welded with a helix plate or blade For manual installation offset round tube earth anchors are installed at a slant, in line with the attached wire and perpendicular to the end post.

The galvanized earth auger earth anchor is weld with a helix at one end and sharp end to each grounded to earth .

Helix earth anchor are widly used for lifting, pulling the wire in field of hard ground or soft ground.

the earth anchor surface can be hot dip galvanized or powder coating( black power and red powder coating) Earth Anchor Sizing is as follows: 15" x 1/2" rod with a 4" Helix - Product not recommended for vineyard trellis systems.

30" x 1/2" rod with a 4" Helix - recommended for trellis systems less than 150 feet.

40" x 5/8" rod with a 6" Helix - recommended for trellis systems less than 300 feet.

48" x 3/4" rod with a 6" Helix - recommended for trellis systems more than 300 feet but not more than 600 feet.

This anchor is also best for Hop Trellising.

- - - - CODE | SIZE | ROD DIA | LENGTH | HELIX | TENSILE STRENGTH | NTS-1522 | 5/8" | 16mm | 54" | 4" | 70KN | NTS-1523 | 5/8" | 16mm | 66" | 6" | 70KN | NTS-1524 | 5/8" | 16mm | 72" | 8" | 70KN | NTS-1525 | 5/8" | 16mm | 84" | 10" | 70KN | NTS-1526 | 3/4" | 19mm | 54" | 4" | 90KN | NTS-1527 | 3/4" | 19mm | 66" | 6" | 90KN | NTS-1528 | 3/4" | 19mm | 72" | 8" | 90KN | NTS-1529 | 3/4" | 19mm | 84" | 10" | 90KN | NTS-1530 | 1" | 25mm | 54" | 4" | 110KN | NTS-1531 | 1" | 25mm | 66" | 6" | 110KN | NTS-1532 | 1" | 25mm | 72" | 8" | 110KN | NTS-1533 | 1" | 25mm | 84" | 10" | 110KN | - - - - Picture View Factory View: There are also helix earth anchor, ground earth anchor, helical anchor, earth auger and no wrench screw anchor available in production
