Forged Hot Dip Galvanized Twin Eye Earth Anchor Rod For Power Line Fittings - China

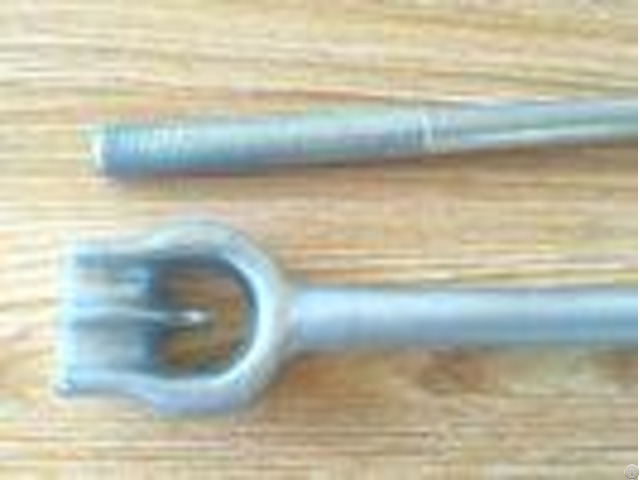

Forged Twin Eye Earth Anchor Rod for power line fittings Product Description # Twin eye anchor rod also refer to twin eye earth anchor rod which will suit two cable strands when working .

The twin eye guy adaptor anchor rods are forged by resistence heater # The surface is hot dip galvanized acceording to ASTM A 153 # Zinc coating of spot thickness is 70um, and average thickness of zinc is 85um # Each anchor rods will fit with one square nut # There are light type rod and heavy type rod so when you order, please specify the rod diameter # For 5/8" thread, the rod diameter can be 14.2mm and 15.8mm # for 3/4" thread, the rod diameter can be 17.2mm and 18.5mm # other types and sizes are customized # Size: 5/8, 3/4, 1" # Length: 8" 10" 12" 14" or 5ft 6ft 7ft 8ft 10ft - - - - CODE | TYPE | THREAD DIA | ROD DIA | LENGTH | THREAD LENGTH | TENSILE STRENGTH | | 8050 | STRAIGHT | 5/8" | 14.2/16 | 8" | 4" | 70KN/75KN | | 8051 | STRAIGHT | 5/8" | 14.2/16 | 10" | 6" | 70KN/75KN | | 8052 | STRAIGHT | 5/8" | 14.2/16 | 12" | 6" | 70KN/75KN | | 8053 | STRAIGHT | 5/8" | 14.2/16 | 14" | 6" | 70KN/75KN | | 8054 | STRAIGHT | 5/8" | 14.2/16 | 16" | 6" | 70KN/75KN | | 8055 | STRAIGHT | 5/8" | 14.2/16 | 18" | 6" | 70KN/75KN | | 8056 | STRAIGHT | 5/8" | 14.2/16 | 20" | 6" | 70KN/75KN | | 8150 | CURVED | 5/8" | 14.2/16 | 8" | 4" | 70KN/75KN | | 8151 | CURVED | 5/8" | 14.2/16 | 10" | 4" | 70KN/75KN | | 8152 | CURVED | 5/8" | 14.2/16 | 12" | 6" | 70KN/75KN | | 8153 | CURVED | 5/8" | 14.2/16 | 14" | 6" | 70KN/75KN | | 8154 | CURVED | 5/8" | 14.2/16 | 16" | 6" | 70KN/75KN | | - - - - Here are the pictures details for guy anchor rod thimble eye bolt Other types of earth anchor rod are available: Forging process of the anchor rods, guy strand anchor rod, straight anchor rod and angle anchor rod thimble eye bolt : Testing strength for anchor rods made in our testing machine Packaging & Shipping 1 - Packaging: 5pcs per bundle, 100 bundles per pallet .

each layer will have wood insert Each anchor rod will fix with one square nut 2 - Shipping: 30 days after confirming your order.
