Best Fire Hose Reel Cabinet Roll Forming Machine Production Line - China

Galvanized Steel & Mild Carbon Steel Fire Hydrant Cabinet Enclosure, Fire Hose Reel Cabinet Roll Forming Machine For Fire Safety Equipment Fabrication.

New design galvanized steel various fire hydrant box production & Outdoor fire hydrant cabinet accessories.

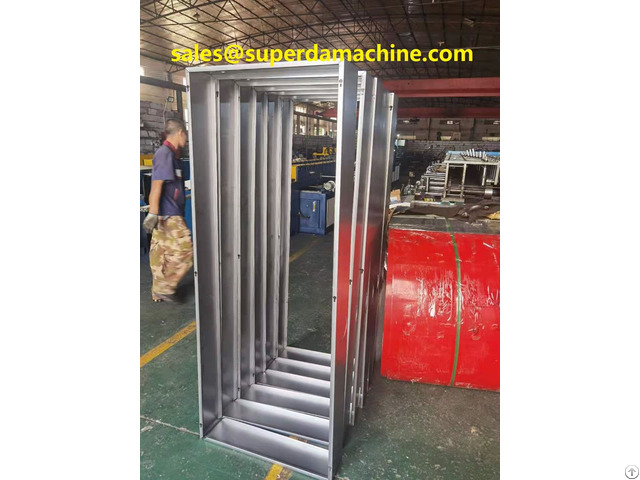

Equipment for producing galvanized steel /mild steel fire hydrant cabinets with different dimension available.

1, Fire hose cabinet production line technical parameters No.

ITEM PARAMETER REMARK

1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.

(mm) 0.8-1.5mm Yield Strength (Mpa) Q235 2 Forming product Width Customized 3 Forming speed (m/min) 6-13m Including hole

4 Forming main power (KW) 7.5 KW FYR

5 Hydraulic power (KW) 18.5 KW FYR

6 Bending power (KW) 3 KW FYR

7 Voltage AC380V, 50Hz, 3P Fire hydrant cabinet production line process Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack Roll Forming machine list Uncoiler, Straightener 1, Type Manual Expansion 2, Parameter 1) Passive discharge 2) Coil weight：< 2T 3) Coil inner D.

：φ450mm-φ530mm 4) Max.

Width.

400mm 5) Thickness .

0.4-1.6mm 6) Straightener roller : 9 pcs 8) Power.

1.5kw Servo Feeder 3.1 Max.

feeding width 400mm

3.2 Feeding thickess 0.4-1.6mm 3 - 3 Motor, 1.3ＫＷ(Yaskawa) Hydraulic hole punching system 3.1 Function：Hydraulic punch breach (Mould 1 set)

3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action, hydraulic cylinder driven punching die, stamping automatic shutdown.

3.3 Hydraulic system working pressure：16MPa

3.4 Hydraulic station：18.5KW( Hydraulic punch hole/shear use same station) A.

Hydraulic punch for the panel gap.

B.

Hydraulic punch for the knock down hole C.

Hydraulic punch for the ventilating hole.

Guide device Main Forming machines (Panel width adjustable) 5.1 Forming Roller：16 stations, and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.

18mm, A3 steel Heavy duty 。

5.3 Rolling speeding: 6-12 m/min。 5.4 Roller material：GCr15, overall quenching, hardness HRC56-62 ℃.

5.5 Motor power：7.5KW。 5.6 Main Roller ：Dia.

75mm, 45 #。

5.7 Equipment base: 45 # H type using welded steel plate.

5.8 Transmission: chain drive.

5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety.

And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

5.10 Flat collect rack 5.11 Box Bending Machine (including mould) Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface.

People interact with the PLC.

Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication.

Workpiece length digital setting, adjustable length can be adjustable as well.

Real-time monitoring of equipment operating status and fault indication.

Operation manual / automatic two styles.

With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:

PLC control system: Siemens

Inverter: Taiwan Shilin

Encoder: Omron

Touch screen: Siemens

Some components are Schneider brand devices.

Devices completed fire cabinet prodution line No.

Machine name QTY REMARK

1 Uncoiler, straightener 1 2 Servo Feeder 1 3 Hydraulic machine 2 With mould

4 Guide device 1 5 Forming machine 1 6 Hydraulic station 2 7 Follow Shear 1 Including knife

8 Collect rack 1 9 Control system 2 10 Box bending device 1 With mould Steel metal box machine accessories brand No.

Name manufacturer

1 Motor & Reducer Domestic brands

2 The main key bearing Domestic brands

3 Inverter Shilin

4 PLC Systems Siemens

5 Low-voltage electrical Schneider

6 Encoder Omron

7 touch screen Siemens

8 Hydraulic system Domestic brands
