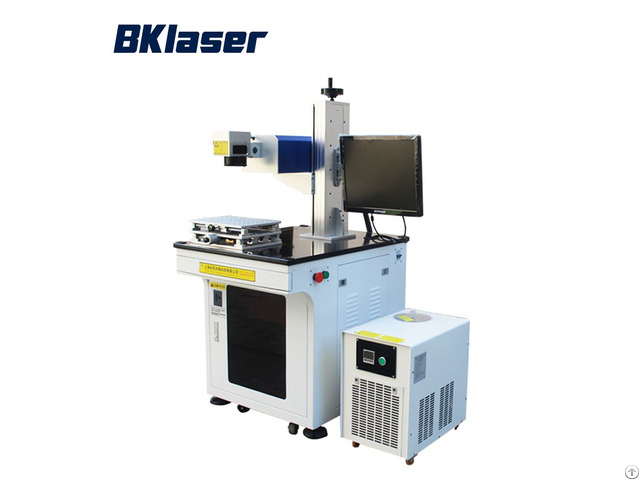

355nm 3w 5w 8w 10w Uv Laser Marking Machine With Best Quality - China

Technical Parameters: Model BK-ZW3W/5W/8W/10W

Power 3W/5W/8W

Laser wavelength 355nm

Beam quality M2 <1.1

Laser output power 0~100% (continuous and adjustable)

Laser output frequency 5KHz~80KHz (continuous and adjustable)

Power stability(8h) <±1%rms

Pulse width 10-50ns

Spot diameter <0.01mm

Tag type Dynamic tag / static tag

Marking speed 800 standard characters per second

Min line width ≤0.005mm

Min character 0.15mm

Repeat accuracy ±0.003mm

Production pass rate 99.9%

Operate system WindowsXP

Cooling method Air-cooled

Operating ambient temperature 15ºC~35ºC

Power supply 220V/single- phase/50Hz/<800W

Laser module life 20000 hours Characteristics:

1 - High beam quality, and the spot is very small, can achieve ultra-fine marking;

2 - Almost perfect marking quality: 355nm output wavelength to reduce the thermal impact on the

workpiece; galvanometer high-precision marking head, marking the effect of fine and repeatable;

high-precision fine spot to ensure the perfect marking results; marking the process of non-contact, marking effect is permanent;

3 - UV laser marking machine for a large range;

4 - Heat affected area is very small, there will be no thermal effect, the material is not deformed not

charred;

5 - Marked fast, high efficiency;

6 - Machine performance is stable, small size, low power consumption;

7 - More suitable for the heat radiation reaction of large materials processing; with the production

line with, automatic loading and unloading, automatic access to materials; suitable for the vast

majority of metal and non-metallic materials on the marking;

8 - Flexible and convenient operating system: the operation process is humanized, Equipment

operation is stable;

9 - Dedicated control software is compatible with AutoCAD, CorelDRAW, Photoshop and other

software output;

10 - Can support the PLT, PCX, DXF, BMP, JPG and other file formats, you can directly use the TTF

font; CCD automatically identify and position the track (Figure), can be used to automatically

identify the track, graphics, bar code, two-dimensional code, serial number and other automatic

scheduling and modification.
