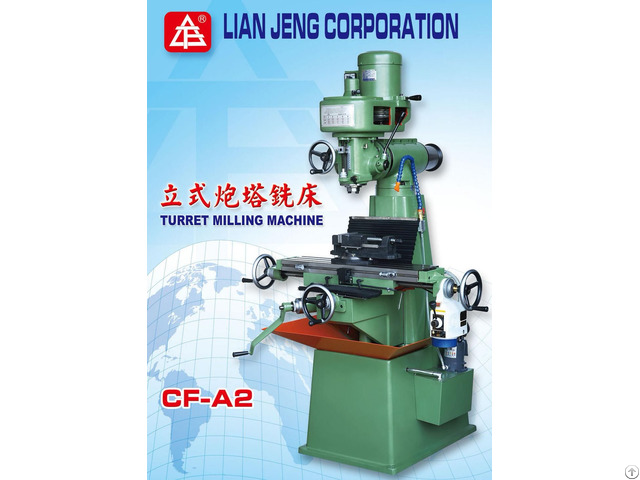

Vertical Turret Milling Machine Lian Jeng Corp - Taiwan
price: contact company for price
Table Working surface(length*Width) 760x180mm Traveling (X / Y / Z) 480x200x350mm T-Slots 16mmx3 VERTICAL SPINDLE Spindle nose N.T.#30 Spindle speeds (R.P.M.
) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz) 150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz) Distance from spindle end to table top 50-350mm Vertical travel of quill 80mm Swiveling angle of head(right & left) 90° Cross travel of ram 180mm Horizontal rotation angle or ram 360° Motors For vertical spindle 0.75KW(1HP)-4P/8P For table feed(optional) 0.1KW(1HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P Size Net weight(approx.
) 500kg Dimensions of packing case 1300x1300x1600mm
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: December 19, 2017
- Business Description: hydraulic milling machine
vertical milling machine
universal milling machine
turret milling machine
vertical horizontal milling machine
