Shsinopower Com Steel Coil Slitting Machine Manufacturers - China

shsinopower.

com- steel coil slitting machine manufacturers

Coil thickness: 0.3-3.0mm

Coil width: 400-2000mm

Productin speed: 20-120m/min

Pipe material: HR, CR, PPGI, GI, AL, CU, etc

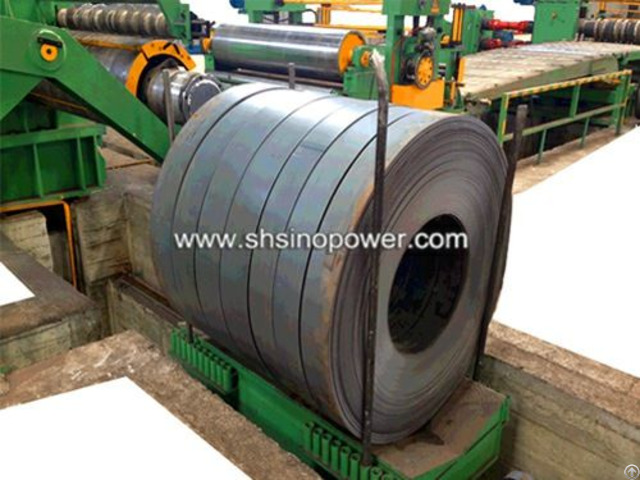

Product description: SP(0.3-3.0) steel coil slitting machine manufacturers is applicable to coils of various specifications with the thickness of 0.3-3.0mm and width 500-2000mm.

it can produce HR, CR, PPGI, GI, AL, CU.

SP(0.3-3.0) slitting machine is applicable to coils of various specifications.

It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling.

It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1 - Technical Parameters

Model Thickness Coil Width Coil Weight Line Speed Coil Material

mm mm tons m/min

SP(0.2-2) 0.3-2.0 400-1600 ≤20 0~150 δs≤230N/2, Cold-rolled Coil, Hot-rolled Coil, Stainless Coil, Galvanized Coil, Aluminum Coil, Copper Coil, etc

SP(0.3-3) 0.3-3.0 400-1600 ≤20 0~120

SP(0.4-4) 0.4-4 500-2200 ≤25 0~100

SP(1-6) 1-6 500-2200 ≤25 0-80

SP(1-8) 2-8 500-2200 ≤25 0-60

SP(2-10) 2-10 500-2200 ≤35 0-60

SP(2-12) 2-12 500-2200 ≤35 0-40

SP(3-16) 3-16 500-2300 ≤35 0-40

SP(5-20) 5-20 500-2300 ≤35 0-20 2 - Process Flow

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control Please Visit our web site for more details or get offers from our email: SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.

com

Mail: shawn(at)shsinopower.

com

(Please send inquiry to above email address, Thanks)

Company Contact:

• Posted By: SINO POWER INDUSTRIAL CO., LTD

• Phone: +8615000437616

• Address: KANGQIAO INDUSTRIAL AREA, Shanghai , SHANGHAI , China

• Email:

• Website: http://www.shsinopower.com/

• Business Description: Sino Power Industrial Co., Limited -shsinopower.

  com metal Processing machinery manufacturer with the factory covers an area of 85, 000 Square meters and has more than 350 employees and over 25 years on metal cold forming machine design, manufacturing, sales and after-sales experience.

  The main design and products are: High Frequency Welded Pipe Mills, steel coil slitting machine line, cut to length line, roll forming machine, cold rolling mill and related roller /molds etc.
