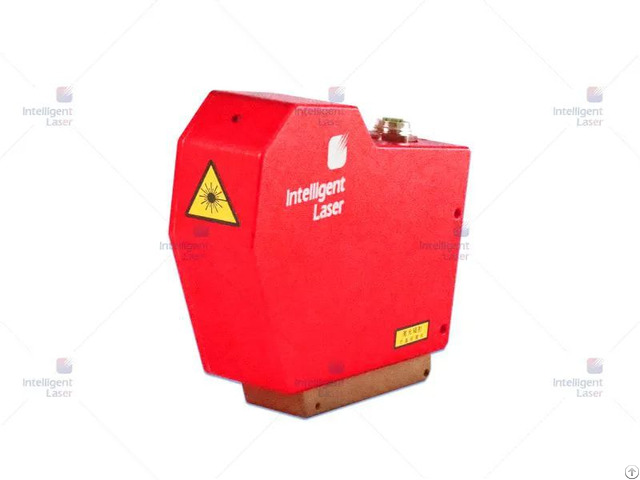

Il Smt090 Laser Vision Welding Seam Tracking And Finding Sensor - China

Featuring viewing distance range of 84mm~96mm, optimum viewing distance of 90 mm, high-level integration, single cable performing two functions of power supply and digital communication, less interference, formidable image acquisition system and high detection accuracy up to 0.08mm, IL-SMT090 Laser Vision Welding Seam Tracking & Finding Sensor provides important visual support for Micro-Butt Welding.

Features of IL-SMT090 Laser Vision Welding Seam Tracking & Finding Sensor:

1 - Single cable performing two functions: power supply and digital communication.

2 - High detection accuracy, capable of detecting welding gap as small as 0.08mm.

3 - Suitable for various complex welding processes such as LBW and FSW.

4 - High-level integration, compact in size, easy assembly and disassembly.

5 - Customized non-standard sensor structures are available.

Zero Gap Seam Tracking Sensor

Zero gap welds are generally found in industries such as pipeline and pressure vessel.

The joints are characterized by extremely narrow joint, alternative occurrence of edge misalignment and possible irregular tacked points, resulting in poor joint consistency and difficulty in controlling welding accuracy.

Zero gap Welding Seam Tracking System developed by Intelligent-Laser can be quickly installed either on industrial robots or special-purpose welding machines, capable of precisely detecting the welding gap as small as 0.08mm.

Through visual guidance, the programmed welding path is modified continuously to compensate for position variation to ensure the weld bead is precisely deposited in the joint, achieving accurate and efficient welding process.
