Hydraulic Vertical Horizontal Milling Machine Cf 1230vh - Taiwan

price: 1.00 Dollar US$

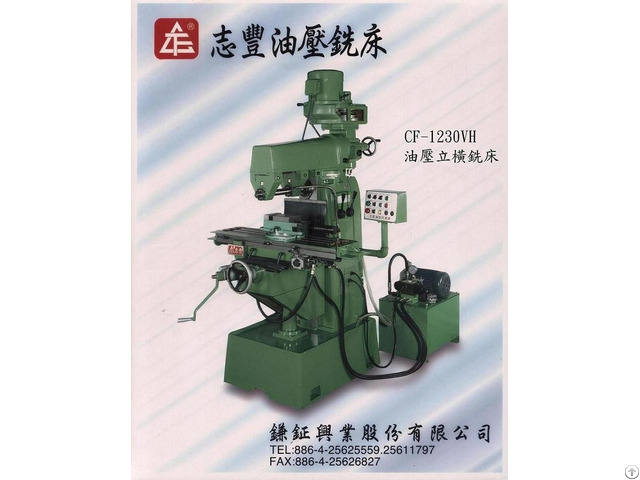

Hydraulic Vertical Horizontal Milling Machine Cf 1230vh

Products Photos Catalog Hydraulic Vertical Photos Catalog

Models (CF-1230VH)

Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 500×230×385mm T-slots 16mm×3 Vertical Spindle Spindle nose N.T.#40 Spindle speed(8 steps)R.P.M 210, 420, 690, 980, 1380, 1720, 1960, 3440(60Hz) 170, 340, 570, 810, 1140, 1430, 1620, 2860(50Hz) Distance from spindle end to table top 50-525mm Distance from spindle center to column 150-450mm Vertical travel of quill surface 125mm Swiveling angle of head(right & left) 90 Cross travel of ram 230mm Horizontal rotation angle or ram 360 Horizontal Spindle Spindle nose N.T.#40 Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz) 40, 100, 170, 260, 390, 980(50Hz) Distance from spindle center to table top 0-470mm Distance from spindle center to ram bottom 115mm Motors For vertical spindle 1.5KW(2HP)-4/8P For Horizontal spindle 1.5KW(2HP)-4P For table feed 1.5KW(2HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P Size of machine Net weight 1, 200kg Dimensions of packing case 1150×1205×1700mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: February 18, 2017

  • Business Description: hydraulic milling machine

    vertical milling machine

    universal milling machine

    turret milling machine

    vertical horizontal milling machine
