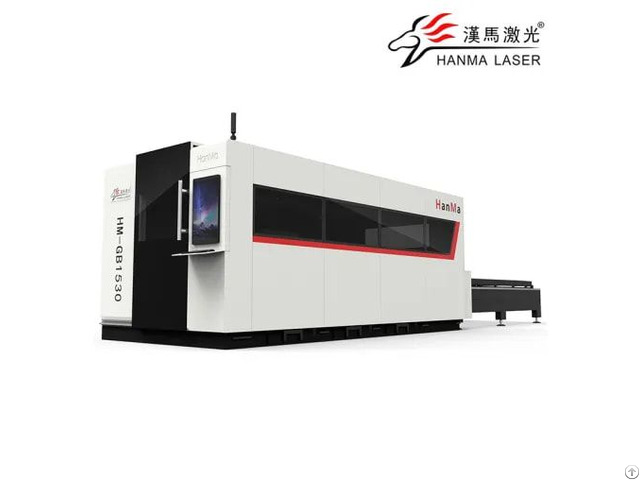

Hm Gb Vi Series Enclosed Double Platform Fiber Laser Cutting Machine - China

Equipment Advantages Heavily insulated bed

The whole machine adopts a weighting process to meet the load-bearing requirements of larger boards.

The entire series of bed bodies are equipped with anti burning boards as standard, which are durable and provide strong support for customers to cut in batches/stably for a long time！ Intelligent partition ventilation

New partition ventilation, dust removal and exhaust system with positive pressure protection for cutting heads, strong smoke exhaust and efficient dust removal! To achieve cleaner factory buildings and optimize the environment Waste oil recovery tank

New design of waste oil collection tank to keep the bed and working environment clean and tidy Cutting range: 0~25mm (depending on the material and laser power)

Equipment Configuration List

Name Brand Note

Laser generator Han Ma Customization Ultra long lifespan, efficient and safe

control software Intelligent software, simple and easy to operate

Laser precision cutting head Intelligent constant temperature, monitoring

Precision gear and rack Grinding grade rack, high precision, long service life

Precision linear guide rail Dust proof steel belt guide rail, high precision, high strength

Precision planetary reducer X, Y-axis High precision, high hardness, silent

AC servo motor and driver Fast response, high precision, and long lifespan

High pressure solenoid valve High volume solenoid valve, ultra fast response

Han Ma Bed Durable rack for 10 years without deformation

Water Chiller Intelligent dual temperature and dual control constant temperature cooling system

1 - If the purchaser purchases the above configuration themselves, the brand and model specified in the procurement table should be purchased.

Otherwise, the purchaser is responsible for any adverse effects on the overall performance of the machine.

2 - Due to government policies or market supply cycles, the supplier reserves the right to replace the configuration with other brands of the same quality

Technical Parameter

Processing format (width x length) 1500mm× 3000mm

Laser power 1500W-6000W

Repetitive positioning precision of X/Y axis ± 0.05mm

Maximum linkage speed ﹤140m/ min

Maximum linkage acceleration ≤ 1.8G

Overall weight ﹥3.0T

Worktable load capacity ≈3000KG

Number of phases 3

Rated voltage of power source 380V

Frequency 50Hz

Whole machine power ≤ 42kw(Depends on laser power)

Protection rating of main power IP54

Dimensions- Single machine(L*W*H) 4481mm× 2266mm× 1743mm

Supporting formats DXF、 DWG、 PLT、 LXD、 CNC、 NC、 TXT At HANMA LASER, we design and manufacture high- performance sheet metal cutting machines that empower manufacturers worldwide.

Whether you're cutting stainless steel, carbon steel, or aluminum, our steel cutting laser machines offer exceptional accuracy, speed, and long-term reliability.

Our solutions are trusted by professionals looking for maximum output, minimal rework, and consistent performance – from batch fabrication to intricate custom projects.

Reliable technology.
