This CNC steel beam coping machine delivers multi-process coping, contour cutting, and hole piercing-going far beyond a standard steel beam coping machine to reduce handling time by 40%.

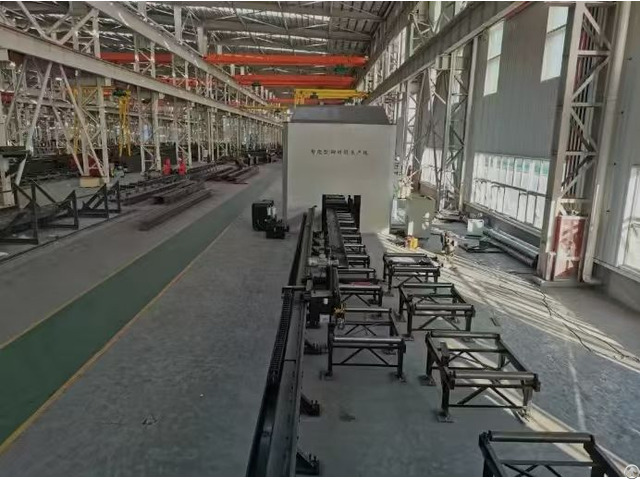

This steel beam coping machine is fully automatic structural steel cutting machine specially designed to cope beam flange & bridge in structural engineering, including H beam, I beam, C channel, angle steel, etc, the CNC steel beam cutting machine is composed of raw material storage rack, feeding car, conveying roller bed, feeding trolley and trolley tracks, cutting unit, discharging unit, finished product storage rack, dust removal device, console station, etc.

When working, the steel beam profiles can be conveyed through the conveying roller to the cutting station and transported to the next station after cutting.

Two kinds of cutting modes are available for the machine: plasma cutting and oxy-fuel cutting, different kinds of materials can be thus cut.

This CNC steel beam coping machine takes Auto CAD drawing, which can be applied directly on the industrial computer or connect with computer via USB, it is characterized of simple modeling, fast cutting, Tekla supported, etc, thus different works, such as hole cutting, profile ends cutting, bevel cutting, marking, etc, can be well carried out with perfect performance.

The steel beam plasma coping machine provides the best way to cut steel i beam and other profiles, thus is widely used for cutting steel beams on site in structural engineering industries such as in building wall, web structure, steel structure, marine engineering, recreational facilities, fitness equipment, etc.

Feature:

*Dual-process cutting:

200A plasma (max 50mm) + oxy-fuel (max 150mm), covers light gauge to heavy structural steel.

Unlike a pure beam coping machine, this line performs full-length cuts, bevels, and copes in *6m infeed roller table + servo-driven beam positioning

Processes 12m H-beams without repositioning.

Achieves 35% faster cycle than using a standalone steel beam coping tool plus separate sawing.

*Automatic torch height control (THC) with arc voltage sensing:

Maintains ±0.5mm cutting gap on warped beams (web height 150-1000mm, flange width up to 450mm).

Eliminates manual torch adjustment.

*Integrated cope & notch programming

Cuts any cope profile (rectangular, mitre, radius) in under 15 seconds per side.

Turns your CNC beam coping system into a full fabrication centre.

*Fume extraction hood (3-kW fan) + splash protection

Keeps workshop air clean and meets OSHA standards-essential for high-volume steel beam coping machinery operations.

*Remote diagnostics (Ethernet/IP) + on-screen cut simulation

Reduces downtime by 50%-real-time alerts for consumable wear or gas pressure drops.

one setup.

Steel Beam Coping Video: Techinical Parameters:

Name Steel Beam CNC Plasma Coping & Cutting Machine

Profile Type H beam, I beam, channel steel, angle steel, etc

Web Height (H) 150-1500 mm (customizable)

Flange Width (W) 100-600 mm (customizable)

Max Beam Length 6 m standard; 12 m with extended roller tables

Cutting Thickness Plasma: 2-50 mm (mild steel, stainless steel)

Oxy-Fuel: 20-150 mm (mild steel)

Bevel Cutting Capacity 0°-45°(plasma) / 0°-35°(oxy-fuel)

Cutting Speed 0-3, 000 mm/min (plasma) / 0-800 mm/min (oxy-fuel)

Positioning Accuracy ±0.3 /12, 000 mm length

Re-positioning Accuracy ±0.1 mm

Cope / Notch Accuracy ±0.5 mm (web & flange)

Loading capacity 3.5T(customizable)

Fuel Gases (Oxy-Fuel) Oxygen (6-10 bar) + Acetylene/Propane (0.5-1 bar)

Power Supply 380V/415V, 50/60Hz, 3-phase
