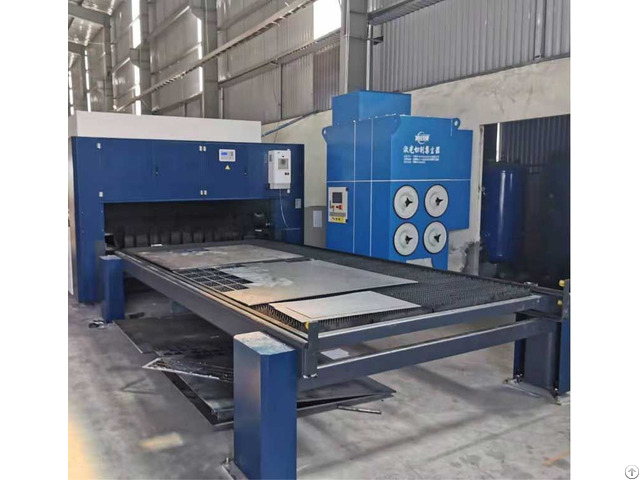

6000w 6000mm 2050mm Fiber Laser Cutting Machine - China

6000W 6000mm*2050mm fiber laser cutting machine

We manufacture 1kw, 2kw, 3kw, 4kw, 6kw 10kw, 12kw fiber laser cutting machine

Complete machine has TWO years warranty.

Highly Efficiency Laser Cutting Machine

3015, 4015, 4020, 6020, 6025, 8020, 8025, 9020 table available.

Open type single table, or double auto exchangeble table, With or without protective cover, customize as your request.

Round/Square tube cutting available.

Wuxi Qiaolian CNC Welding&Cutting Machine Co., Ltd is a branch of Qiaolian Group, professional in CNC machine R&D, production, especially for high precision machine like fiber laser cutting machine, HD plasma cutting machine, Robot welding machineetc.

Our reputation in this field is long-life of machine, more and more old customers come back for new business after used our machine for some years, as they have seen the stability of our machine same as Germany, USA brand.

Machine specification

Type JLMD6025

Effective Stroke X axis(mm) 6050 Y axis(mm) 2350 Z axis(mm) 250

Positional Accuracy X axis(mm) ±0.05 Y axis(mm) ±0.05 Z axis(mm) ±0.01

Repeated Positioning Accuracy X axis(mm) ±0.03 Y axis(mm) ±0.03 Z axis(mm) ±0.005

Repid Postitioning Speed X axis(mm) 120 Y axis(mm) 120 Z axis(mm) 48

Work table bearing(kg) 3000kg(adjustable)

Worktable exchange time 21s(adjustable)

The laser power(W) 500/700/1000/1500/2000/30 00/4000

Machine weight(Ton) 15.5

Size L*W*H(mm) 14950×3850×2100

Stable Laser Cutting Machine Supplier: Wuxi Qiaolian CNC Welding & Cutting Machine Co., LTD

Machine configuration and operation cost

enclosed table

Cypcut controller

BCS100 auto height controller

Yaskawa servo+Shimpo gearbox

APEX gear rack+INA rail

Raytool auto focus head

SMC+Parker Valves+Schneider relay

Hans water chiller Machine table Features

1 - Gantry dual drive, adopting advanced gear rack transmission structure.

Equipped with grinding gear and rack, and through the precision collimator one time metering assembly.

The machine will secure long-term high cutting speed, high precision transmission.

2 - The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

3 - Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.

This structure design greatly improves the high speed response, and precision of cutting.
