Stainless Steel Articulating Video Borescope With 120m Cable Meter Wps712dn - China

Pipeline Inspection Device With 120m Cable Meter Counter Video Borescope WPS712DN Product Description MODEL NO.

WPS712DN SUPPORT CUSTOM-MADE, accessaries changeable.

Product features: 1 Camera: 50mm diameter size.

30 pcs Leds Waterproof sapphire lens.

Stainless housing.

2 Monitor: 7 inch big& cool monitor.

High-definition: 720 X 576 SD card icon and SD capacity osd.

3 DVR: Video&audio record.

Leds of camera adjustable.

Power light flash before power off in case of video lost.

4 Battery work time: 260minutes.

5 ABS case: anti-throw, good impact resistance, longer service life.

6 Skids: support the camera in the middle of pipe.

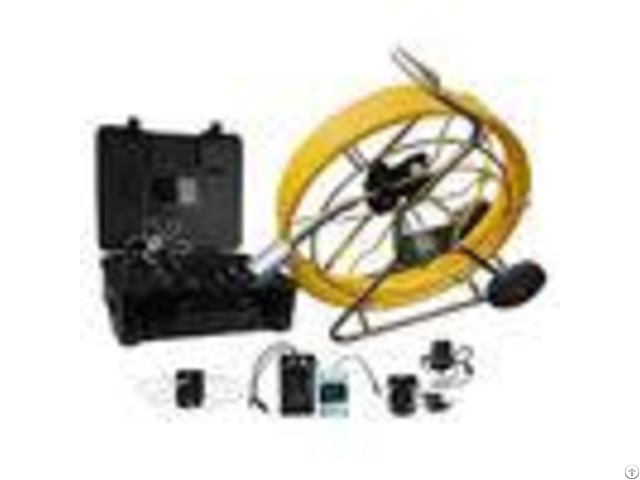

Packing list: 1 50mm camera 2 60-180m cable 3 7 inch Monitor 4 DVR 5 Li-on Battery 6 Charger 7 Three Skids 8 ABS Case Specification: - - - -

Camera | 1 Camera size: 50 X 76mm | 2 Camara power supply: DC 3.3V | 3 Stainless steel shell /sapphir glass | 4 Camera work current: 100MA | 5 Sensor size: 1/4 inch | 6 Waterproof: IP68 | 7 Total Pixels: PAL: 720X576 NTSC: 720X480 | 8 Camera light: 30PCS white LEDS, illumination adjustable | 9 View angle: 120 | 10 Work temperature: -10-50 | DVR | 1 DVR Total Pixels: 720X576 (D1) | 2 Movie format: AVI | 3 DVR work current: 200MA DVR power supply: 12V | 4 Microphone audio record | 5 Storage medium: SD card (max 32G) | 6 Stereo earphone output | 7 Dagital clock and dagital calendar | 8 USB keyboard input | 9 Picture snap and movie record | 10 Max edit page: 4 pages | Monitor | 1 Monitor size: 7inch TFT color monitor | 2 Up, down, left, right adjustable | 3 Monitor Total Pixels: 1440 X 234 | 4 16: 9&4: 3 model | 5 Monitor power supply: DC 12V | 6 Sunshade include | 7 Osd language: English | 8 Waterproof connector | Cable wheel | 1 Cable size: L770XW371XH810mm | 2 Fiberglass diameter: 9mm | 3 Wire material: fiberglass rod | 4 Fiberglass color: yellow/blue | 5 Cable length: 20-80 changeable | 6 Wheel material: stainless steel | Microphone | 1 Frequency respose: 20~20KHz | 2 Line Length: 1m | Li-on battery | 1 Charge time: 5hours ; Work time: 260minutes | 2 12V 4000MAH battery | Skid | 90&140&220mm | Charger | 1 input: AC100-240V~50/60Hz | 2 Output: DC 12V/1000MA | 3 DC plug diameter : 2.1mm | AL Case | ABS Case | 1 Material: fire board+Aluminum alloy | 1 Material: engineering plastic | 2 Size: L480XW415XH200mm | 2 Size: L520XW435XH200mm | 3 Color: black | 3 Color: orange/green/black | - - - -
