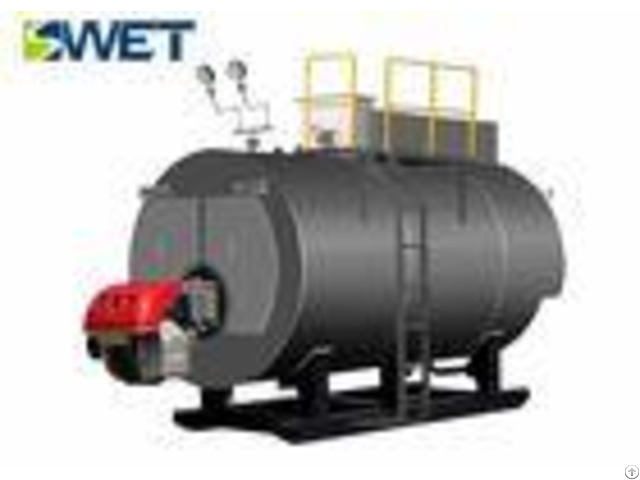

Simple Structure Natural Gas Steam Boiler Low Noise Quick Installation - China

Quick Installation 1.25Mpa Natural Gas Steam Boiler With Simple Structure Product description The series of gas steamboilers equipped with imported brand-name burners, according to different fuel selection of different burners, wide adaptability.

Among them, Baltur's GI 1000 LXME MB burner was selected as the gas type Product advantages 1 - Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise 2 - Quick-mounted overall structure, small size, compact structure, easy installation 3 - There is no smoke in the gas steam boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefits are remarkable Specification - - - - WNS series of automatic gas (oil) steam energy-saving boiler product selection table | Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions | Unit | t/h | MPa | | | Nm/h | % | mm | WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 | WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 | WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 | WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 | WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 | WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 | WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 | - - - -

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
