Vertical Turning Lathe Machines C5118 - China

price: 60000.00 Dollar US$

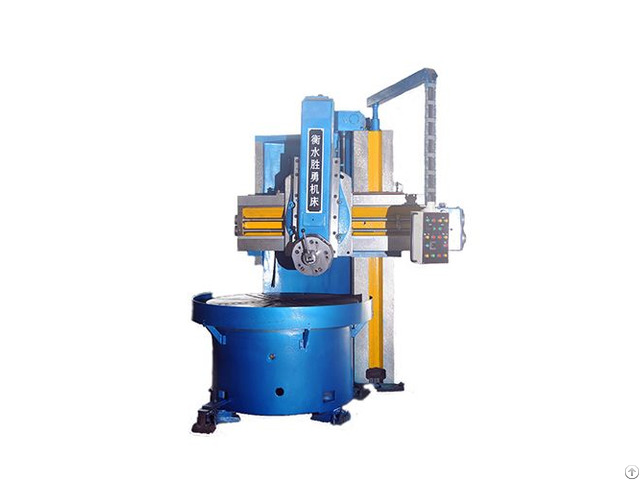

Vertical Turning Lathe Machines C5118

Products Photos Catalog Vertical Turning Lathe Photos Catalog

Technical specification of Vertical turning lathe machines C5118

1 Table diameter 1400 mm

2 Maximum turning diameter 1800 mm

3 Maximum height of workpiece 1000 mm

4 Maximum weight of workpiece 5 t

5 Speed change of table 5-160 r/min

6 Working table Step of rotation speed 16

7 Feed rates 0.8-86 mm/min

8 Step 12 step

9 Horizontal travel of tool post 1000 mm

Vertical travel of tool post 800 mm

10 Horizontal travel of side cutter bar 630 mm

Vertical travel of side cutter bar 900 mm

11 Crossrail travel 650 mm

12 Maximum section scale of tool bar 30×40 mm

13 Power of main motor 30 kw

revolutions 1470 r/min

14 Power of Feed motor 1.3/1.7 kw

Revolutions 940/1440 r/min

15 Machine weight 17.5 t

16 Overall dimensions(L×W×H) 2900×2900×3800 mm


Company Contact:


  • Phone: +86-317-5202090

  • Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China, Hengshui City, Hebei Province, China

  • Email: Email


Published date: July 21, 2016

  • Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine, vertical lathe machine , Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.

    If interested, please feel free to contact us.
