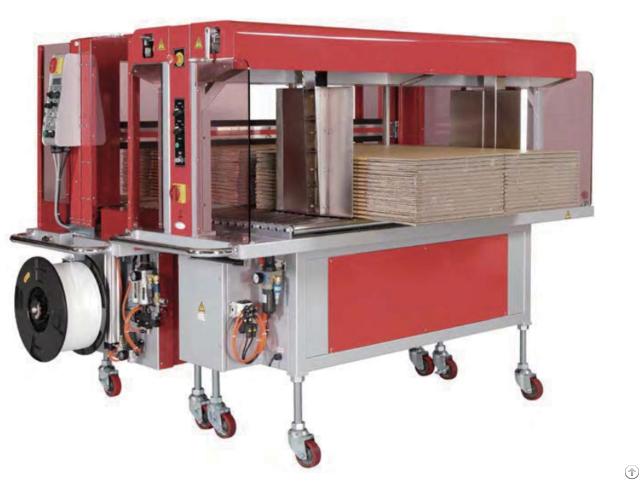

Tp702ccq L M Online Strapping Machine Transpak Taiwan - China

price: contact company for price

Tp702ccq L M Online Strapping Machine Transpak Taiwan

Products Photos Catalog Tp702ccq Strapping Photos Catalog

Technological Parameters: MODEL TP-702CCQ-L TP-702CCQ-M

Consist of TP-702C-L + CC-BSS TP-702C-M + CC-BSS

Electrical Requirements 220V/380V/400V, 50/60Hz, 3PH

Strapping Capacity Single strap: 26 bundle/min

Double straps: 20 bundle/min

(Bundle dimension: 400L×1300W×350H) Single strap: 26 bundle/min

Double straps: 21 bundle/min

(Bundle dimension: 400L×900W×350H)

Strap Requirement Strap width: 5 mm, 6 mm, or 9 mm

Strap thickness: 0.35 mm~0.65mm

Tension Range 1 to 32 kg

Dimensions

(W) × (D) × (H) 2310 × 1509 × 1470~1720 mm 2168 × 1509 × 1470~1720 mm

Table Height 750 ~ 1000 mm

Machine Net Weight 961 kg 920 kg

Maximun Package Weight 40kg 40kg

Minimum Package Size 200W × 20H × 300L mm

Maximum Package Size 1420W × 450H × 1020L mm 1150W × 450H × 1020L mm

Strap Core Inner Diameter 200 mm

Power Consumption 1.5 kW

Temperature of working environment 5 ~ 40℃

Conveyor Speed 15 ~ 60 M/min

Pneumatics Source 6 BAR

Air Consumption 14.2 liter / cycle

(13 CFM @87PSI)

Press Bar Pressure 20~60 kg


Company Contact:


  • Phone: 008618106582668

  • Address: 17floor, Building 3, Greenland Central Plaza, No.98 Daguan Road, Gongshu District, , Hangzhou, , zhejiang , China

  • Email: Email


Published date: December 30, 2025

  • Business Description: We continuously provide :

    Turn-key Projects for corrugated carton factories, along with raw materials and spare parts.

    Our offerings include 3-layer and 5-layer corrugated paperboard production lines, single facer lines, flexo printing and slotting machines, folder gluer machines, creasing and die-cutting machines, stitching machines, laminating machines, offset printing machines, slitting and rewinding machines, paperboard sheeters, and more.
