S And A Air Water Chiller For Cooling Ipg Laser With 2 Years Warranty - China

S&A air/water chiller for cooling IPG laser with 2 years warranty

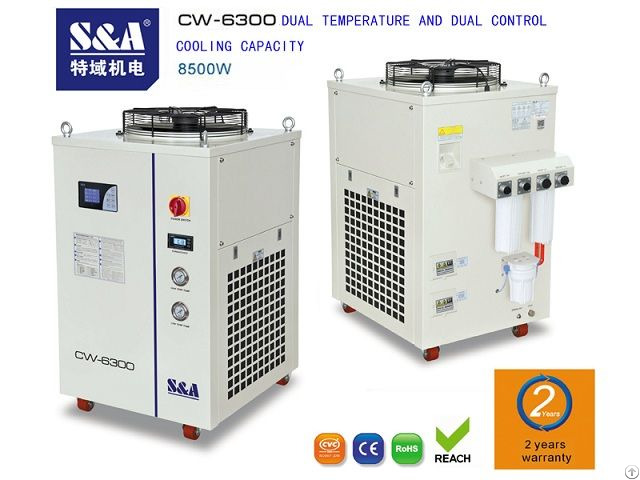

S&A model CW-6300 is dual temperature and dual control type industrial water chiller, it is applied to cool 800W fiber laser.

It is able to cool the fiber laser and optic lense at the same time, multiple use for saving cost, space and manual move, quiteconvenient for the user.



Features

1 - 8500W cooling capacity; optional environmental refrigerant;

2 - ±1℃ precisely temperature control;

3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

4 - Dual temperature and dual pump to satisfy different needs of fiber laser device and the lens;

5 - With Ion adsorption filtrating and test functions conform to fiber laser device operating requirements;

6 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

7 - Multiple power specifications; CE approval; RoHS approval;

8 - Long working life and easy operation;

9 - Optional heater and water filter.

Model CW-6300AT CW-6300ET

Voltage AC 1P 220V AC 3P 380V

Frequency 50Hz 50Hz

Current 3~20A 2~7A

Compressor

power 2.8KW 2.6KW

3.73HP 3.46HP

Refrigeration

capacity 1706Btu/h+25597Btu/h

0.5KW+7.5KW

430Kcal/h+6450Kcal/h

Refrigerant R-22 / R-410a

Refrigerant

charge 2150g 2450g

Stability ±1℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

pump power 0.1 KW+1.1 KW

tank capacity 6 L+34 L

inlet and outlet Rp1"

pump lift 25 M+53M

pump flow 16 L/min+116 L/min

N.

W 155Kgs

G.

W 175Kgs

Dimension 95x65x117 cm (L x W x H)

Package dimension 107x85x140 cm (L x W x H)
