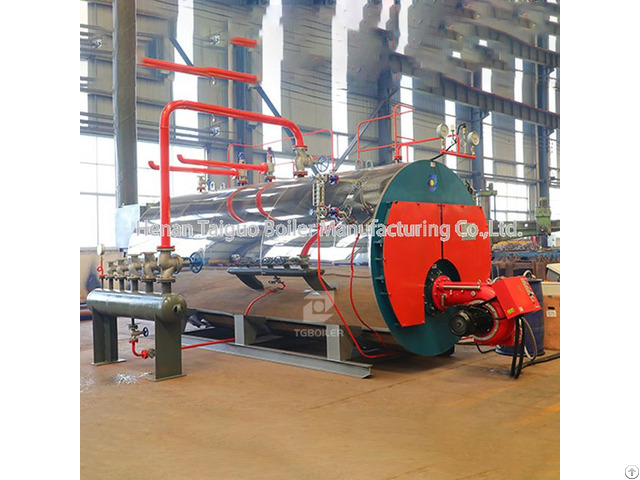

Quick Assembly Type Wns Series Oil And Gas Steam Boiler - China

Brief Introduction WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler.

After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Product Application Textile, Garment, Food & Beverage, Chemical Industry, Cement Curing, Disinfection, etc.

The Features Special Structure & High Efficiency: Adopting corrugated furnace, threaded firetubes, 3 fire-passes structure, full wetback deisgn, markedly increased boiler's heating area and heat transfer efficiency.

It is equipped with renowned brand burners (BALTUR, RIELLO, HOFAMAT, or ECOFLAM), also finned tube type economizer can ensure boiler's thermal efficiency up to 95%.

High Quliaty Control: In the manufacturing processes, TGBOILER® adopts steel strength test, autmatic steel cutting/ plate rolling/ welding, 100% x-ray checking, magnetic particle check, C-scan ultrasonography Ultrasound check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test, etc, to make sure all finished products is qualified.

Automatic Safe Operation: WNS series boiler is equipped automatic burner ignition, automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, free settable ON/OFF time, visible system’s working states on screen.

Easy Maintenance: WNS series boiler uses full water back tube-sheets instead of traditional dry back tube-sheet, can avoid the dry fire broken, reduce the range of steel cooling contraction and hotting expansion.

Also, we adopting openable smoke-boxes, users can replace the broken fire-tubes conveniently.

Company Contact:

• Posted By: Henan Taiguo Boiler Manufacturing Co.,Ltd.

• Phone: 86-13526691629

• Address: No 277,Boxue street, ZhengZhou , Henan , China

• Email:

• Business Description: Our company is a professional manufacturer, mainly produce gas(oil) boiler, biomass boiler, electric boiler, thermal oil boiler, etc.
