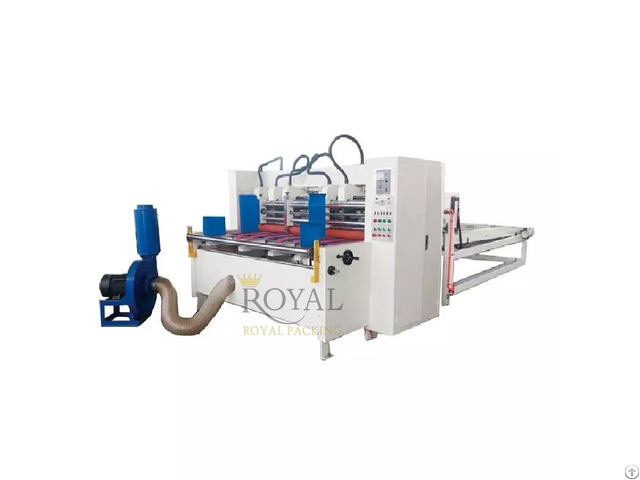

Mjbd 5 Auto Feeding Slitter Score - China

Detail Introduction:

Automatic feeding part:

1) Machine adopts screw rod to adjust paperboard Size, only one worker can easy and fast to finish adjust.

2) Paperboard Size adjustment structure which is better adapt to different length paperboard, and paper feeding is stable and accurate.

3) Feeding Belt adopt high quality rubber seamless belt, which can bear great friction force and with long using life Slitting part:

1) MJBD-5 type slitter score thin blade machine adopt thin blade knife to cut, the knife is sharp after deal with grinding wheel which make the paperboard edge is smooth, and with less flattening problem, this improve the quality of paperboard and will good for the paper feeding on printing machine, also can reduce waste and improve the quality of cartons.

2) Blade Grinding has two ways: grind by hand and automatic grinding, customer can judge the blade grinding time by paperboard cutting speed.

Keep knife sharp will make the paperboard edge smooth and orderly.

3) Electric adjust the knife distance, pneumatic lock and fixation automatically.

Manual adjust the score line width.

Machine adopt independent single knife lift device which can adjust according to the quantity of paperboard you want to cut; this machine can adjust cutter size with different wear degree arbitrarily.

Feature: Paperboard feeding with rubber wheel, then slitting, then pull paperboard by rubber wheel and finally creasing score line on paperboard.

For the last step of creasing can set the depth of the score line, slitting part adopt the high steel slitter knife, transmission knife drive by timing belt, customer can change knife very fast.

Machine adopts pastern axes to pull paper which is much better than the normal machine.

Main parameters:

Model MJBD-5-2300

Max.

Paperboard width 2300mm

Max.

Slitting width 2100mm

Max.

Machine speed 120 m/min

Quantity of slitter knife 6

Quantity of score wheel 10

Min.

slitting width 140mm

Min.

Score width 55mm

Outer diameter of slitter knife 200mm

Thickness of slitter knife 1.3mm

Power of main motor 7.5kw

Power of Blower 3.4kw

Pneumatic pressure ＜0.8mpa

Machine size 3000×2300×1500mm

Machine weight 1800kg

Min.

paperboard width (Distance between the two rubber wheels) 320mm
